| 起源の場所: | 中国 |
|---|---|
| ブランド名: | SAFEGAS |
| 証明: | ATEX/IECEX |
| モデル番号: | YT-98H |
| 最小注文数量: | 1 |
| 価格: | 交渉可能 |
| パッケージの詳細: | カートン（43*27*15cm） |
| 受渡し時間: | 3営業日 |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 月に3000個 |
| 検出されたガス: | LEL,CO2,CO,H2S,O2 | 検出原理: | 触媒 (LEL),電気化学 (O2/CO/H2S),赤外線 (CO2) |
|---|---|---|---|
| 力: | 12-24V DC | 正確さ: | ≤±2-5％fs |
| 応答時間（T90）: | 15〜30秒 | 再現性: | ≤±1％ |
| ポンプの流れ: | 0.35-0.5 L/min | 温度: | –20 ℃～55℃ |
| 湿度（凝縮なし）: | 0-95%RH | オプションアラーム: | 鳴き声,アラーム状態表示,アラーム値は設定可能 |
| サンプリング方法: | ポンプ吸引 | ||
| ハイライト: | 5-gas detector with pump,fixed gas detector for LEL CO2 CO H2S O2,multi gas detector 0.35-0.5L/min pump |
||

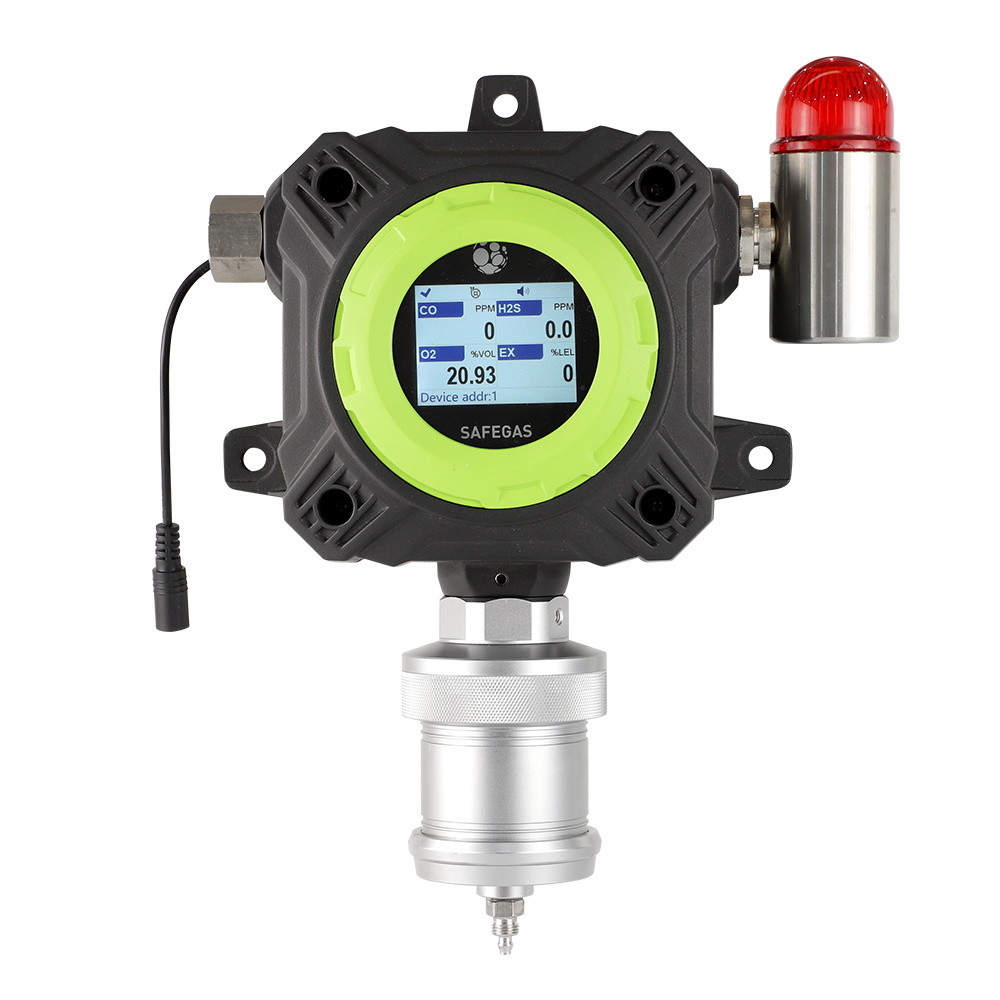

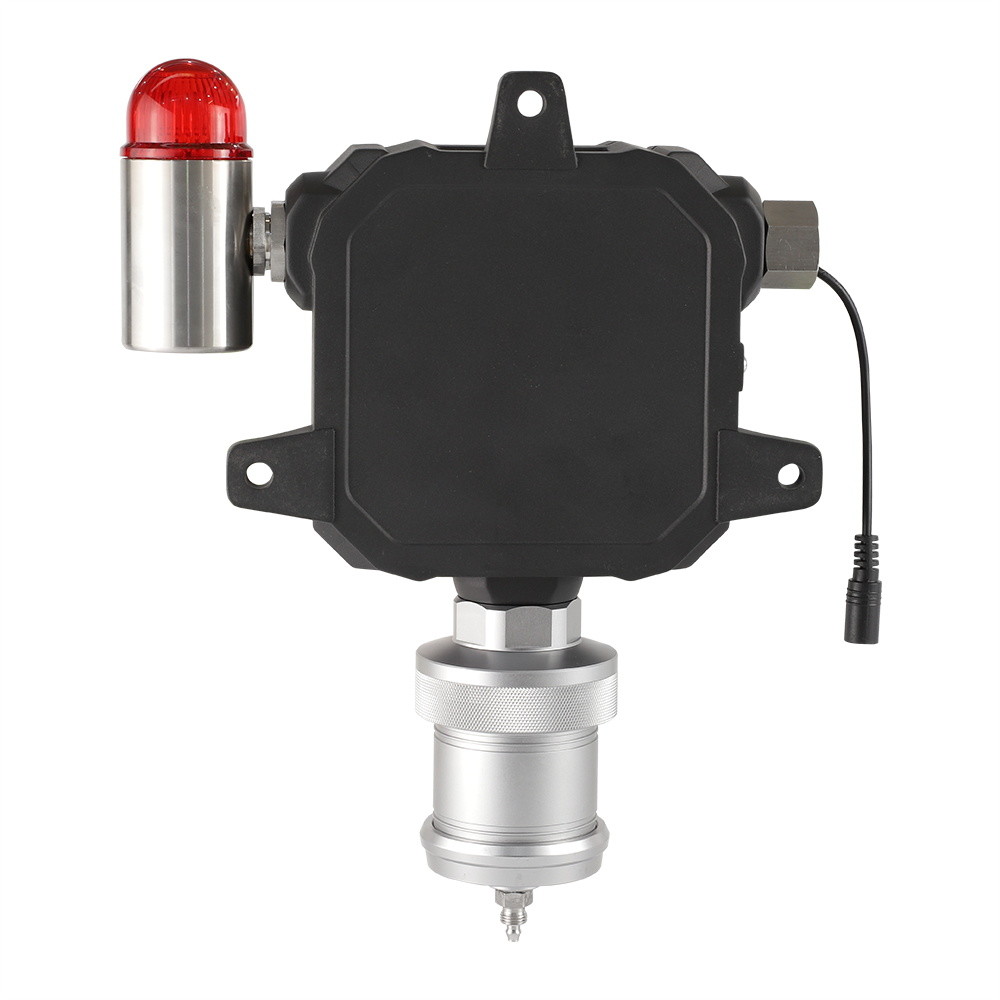

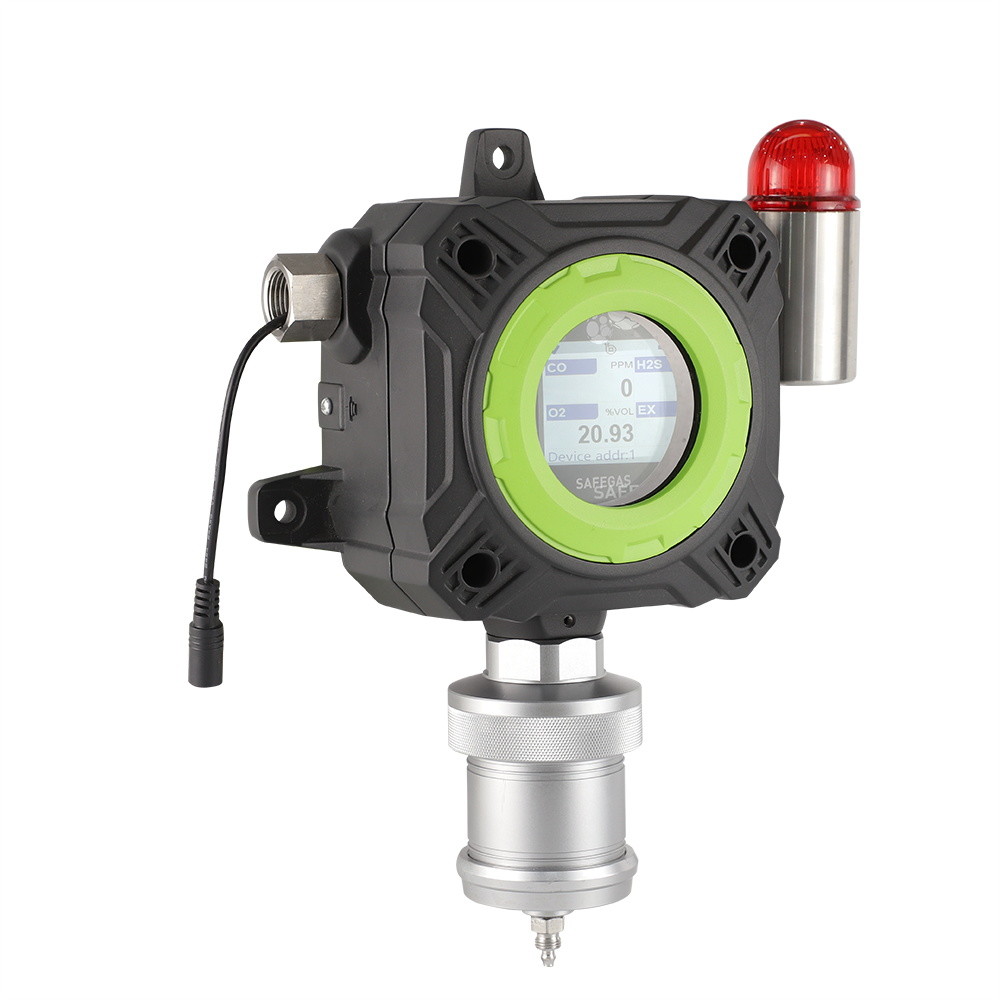

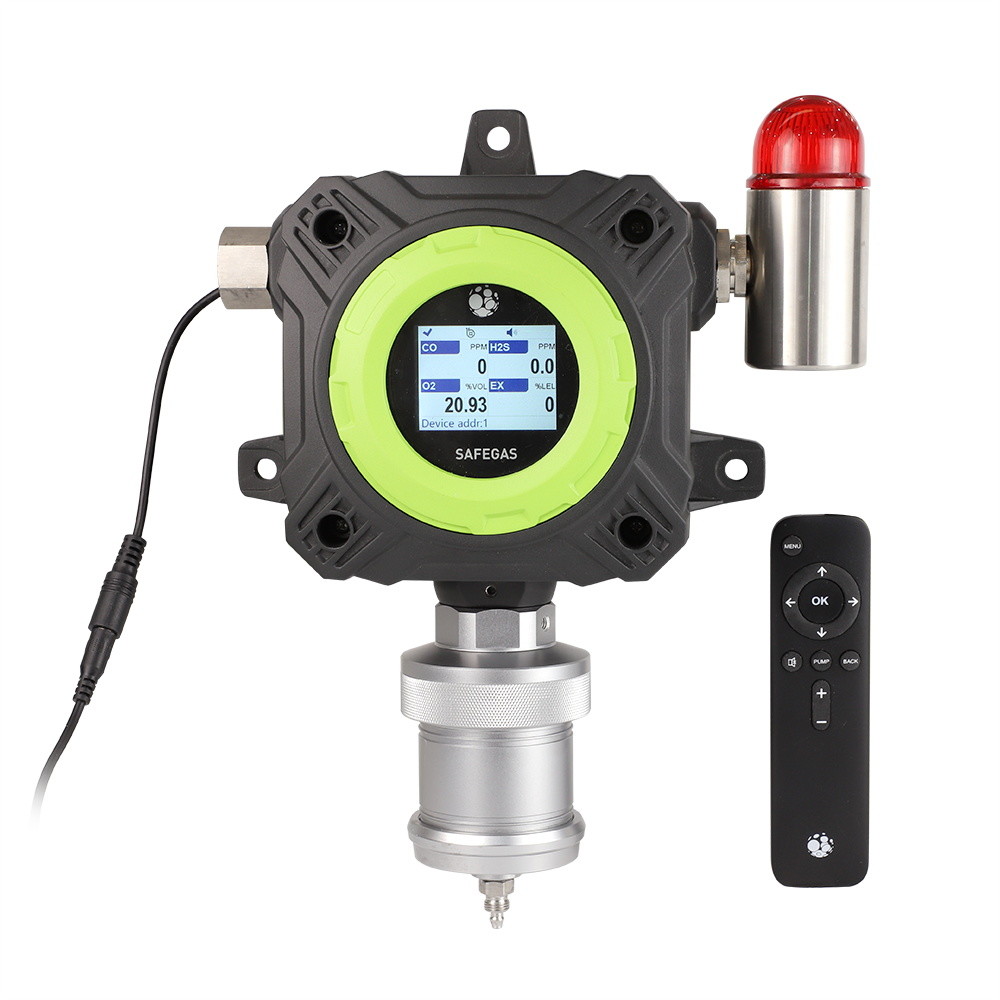

The YT-98H/YT-98H-A Fixed Gas Detector is a built-in pump-suction single & multi gas detector with IECEx and ATEX certification. Featuring a non-contact magnetic wand design, it's suitable for installation and operation in explosion-proof areas and the Oil & Gas industry. The device offers 3-wire 4 to 20-mA output with relays, HART, and Modbus protocols for compatibility with most control systems. Optional wireless functionality allows remote data viewing on laptops, mobile phones, or cloud systems.
| Gas Detected | LEL, CO2, CO, H2S, O2 |
|---|---|
| Detection Principle | Catalytic (LEL), Electrochemical (O2/CO/H2S), Infrared Ray (CO2) |
| Installation Method | Wall-mounted, piping type, flow-type (according to detected environment) |
| Measure Range | LEL: 0-100%LEL, O2: 0-30%vol, CO: 0-1000ppm, H2S: 0-100ppm, CO2: 0-5000PPM |
| Resolution | LEL: 1%LEL, O2: 0.1%vol, CO: 1ppm, H2S: 0.1ppm, CO2: 0-5000PPM |
| Accuracy | ≤±2-5%FS (depending on specific sensor) |
| Signal Output | 4-20MA, RS485, relay |
| Response Time (T90) | 15-30s (depending on specific sensor) |
| Recovery Time | ≤10S |
| Repeatability | ≤±1% |
| Display | 2.4-inch color display, resolution 320*240 |
| Operating Language | English/Chinese |
| Display Content | Gas molecular formula, concentration, unit, pump status, etc |
| Temperature | -20ºC~55ºC |
| Humidity | 0-95%RH |
| Explosion-Proof | IECEX:Ex db IIC T6 Gb ATEX:Ex db IIC T6 Gb |
| Degree of Protection | IP66 |
| Alarm Mode | Sound, light |
| Operating Time | 24h |
| Dimensions | 43×27×15cm |
| Weight | 4.6kg |
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems for 16 years. Focusing on "gas detector" as our core product, we offer complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Our products have obtained international explosion-proof certifications including IECEX, ATEX, CE, TEST Report, ISO 9001, and ISO 45001. These certifications ensure product quality comparable to international brands like Honeywell, MSA, and RAE, but with more competitive pricing.
We are proud to have worked with industry leaders including Huawei, Coca-Cola, Samsung, Nestlé, and more.
