IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant

基本情報
起源の場所: 中国
ブランド名: SAFEGAS
証明: ATEX/EMC/IECEX
モデル番号: Sky3000
最小注文数量: 1
価格: 交渉可能
パッケージの詳細: アルミニウムスーツケース
受渡し時間: 3-5営業日
支払条件: T/T
供給の能力: 月に1000個
詳細情報
検出されたガス: 指定されるため 検出原理: 指定されるため
測定範囲: 適用に従って指定される。 解決: 適用に従って指定される。
応答時間: ≤20秒 精度: 特殊ガスを除き ≤±1-5%F.S
言語: 中国/英語/ロシア/ポリッシュ(その他の言語をカスタマイズできます) パワーオン後に自動的にテストしてキャリブレーションします: リセット、最大値(最大)、最小値(min)、Stel、TWA値を含む
ユニット: ppm、mg/m³、%lel、%vol 画面: LCD(160 x 96)、180°回転
データレコード: 100,000測定、ストレージ間隔は5〜3600秒で調整可能で、データはPCにエクスポートできますソフトウェアは必要ありません
ハイライト:

IECEX certified multi gas detector

,

ATEX portable gas detector

,

IP67 waterproof multi gas detector


製品の説明

Product Name

SKY3000 Portable Pumping Gas Detector

Product Overview

SKY3000 is a IECEX/ATEX/EMC certified portable multi gas detector. It is suction type with built-in pump to detect up to 6 gas types in 1 device. The standard gas type is multi 4 (CO H2S O2 LEL) gases. There are thousands of gas types for selection to support very wide applications. It’s with wireless communication so user can access to real-time data and alarm status remotely. The standard datalog function to export data to PC and no need software.

Product Advantage

  1. IP67 water & dust resistant and 3 meter drop resistant case, rugged and durable designs.
  2. Standard man down alarm function
  3. Real time value, TWA, STEL, MAX, MIN multiple numerical display
  4. One press to restore factory settings.
  5. Large graphical display can rotate 180°
  6. Standard water trap filter to protect the sensor
  7. With docking station to perform daily bump test and calibration (Optional)
  8. Wireless data transmission including Lora, Bluetooth (Optional)
  9. Support backlight function the backlight time can be manually set
  10. Low power consumption, long stand by time
  11. Support firmware upgrade remotely

Technical parameters

Gas Detected
To be specified
Detection Principle
To be specified
Measure range
Specified according to application.
Resolution
Specified according to application.
Response time
≤20 seconds
Precision
≤±1-5%F.S except for special gases
Language
Chinese/English/Russian/Polish (More language can be customized)
Automatically test and calibrate after power-on
Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit
PPM, mg/m³, %LEL, %VOL
Display
LCD (160 x 96), 180° rotate
Backlight
Turned on automatically when alarming, the backlight time can be manually set
Data record
100,000 readings, the storage interval is adjustable from 5 to 3600 seconds, data can be exported to PC no need software
Alarm
95dB@30cm buzzer alarm, flashing red LED alarm and vibration alarm. Alarm status indication on the screen, alarm latched; diagnostic alarm and battery under-voltage alarm, pump failure alarm; man down alarm
Battery
3.7V rechargeable lithium battery, battery capacity 2200mA
Working hours
More than 15 hours in continuous pumping mode
Charger
Travel charger with DC interface, charging time ≥ 4 hours
Working temperature
-20℃~+50℃
Explosion-proof grade
IECEx: Ex ia IIC T4 Ga; ATEX: II 1G Ex ia IIC T4 Ga
Humidity
10~90%RH (no condensation)
Certification (EU regulations)
2004/34/UE (ATEX)
Protection grade
IP67
Environmental pressure
86~106Kpa
Size
157×84.5×59.5mm (including back clip/water trap filter) (length × width × height)
Weight
365g (including battery, belt clip and filter)

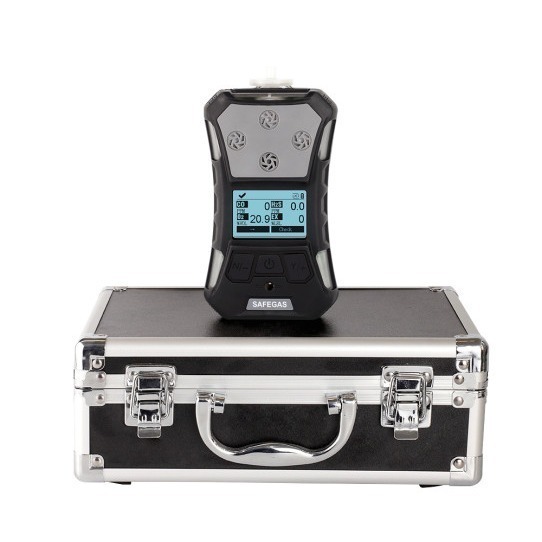

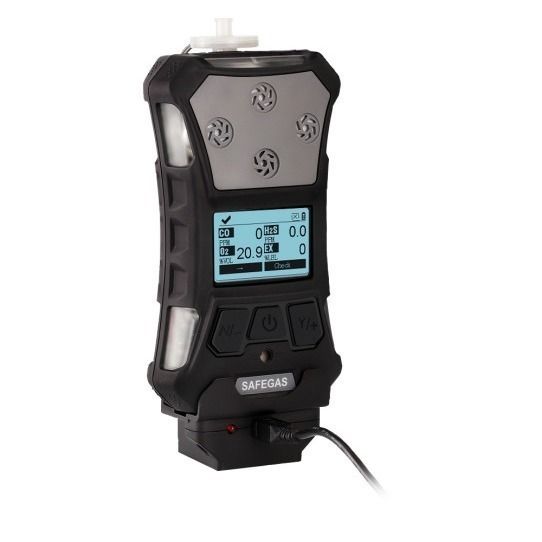

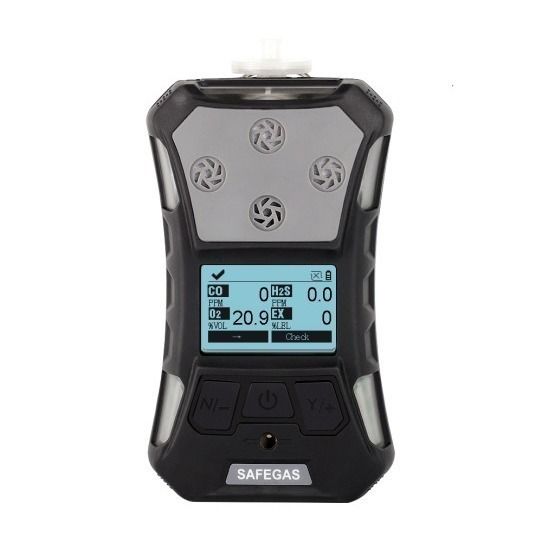

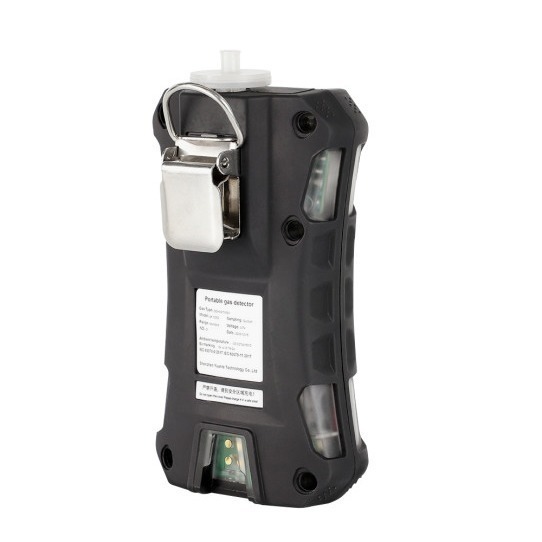

Product Images


IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 0

IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 1

IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 2

IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 3
