| 起源の場所: | 中国 |
|---|---|
| ブランド名: | SAFEGAS |
| 証明: | ATEX/IECEX |
| モデル番号: | YT-98H |
| 最小注文数量: | 1 |
| 価格: | 交渉可能 |
| パッケージの詳細: | カートン（43*27*15cm） |
| 受渡し時間: | 3-5営業日 |
| 支払条件: | T/T |
| 供給の能力: | 月に3000個 |
| 検出されたガス: | VOC、O2、LEL、有毒ガスなど | 検出原理: | PID、電気化学、IR、触媒燃焼など |
|---|---|---|---|
| 測定範囲: | 指定されるため | 解決: | 指定されるため |
| 正確さ: | ≤±2％FS（特定のセンサーに依存） | 応答時間（T90）: | 20秒（特定のセンサーに応じて） |
| 再現性: | ≤±1％ | ポンプの流れ: | 0.5 L /min |
| ゼロシフト: | ≤±1％（FS/年） | ||
| ハイライト: | IECEx ATEX certified multi gas detector,fixed single gas detector with remote control,noncontact magnetic wand gas detector |
||

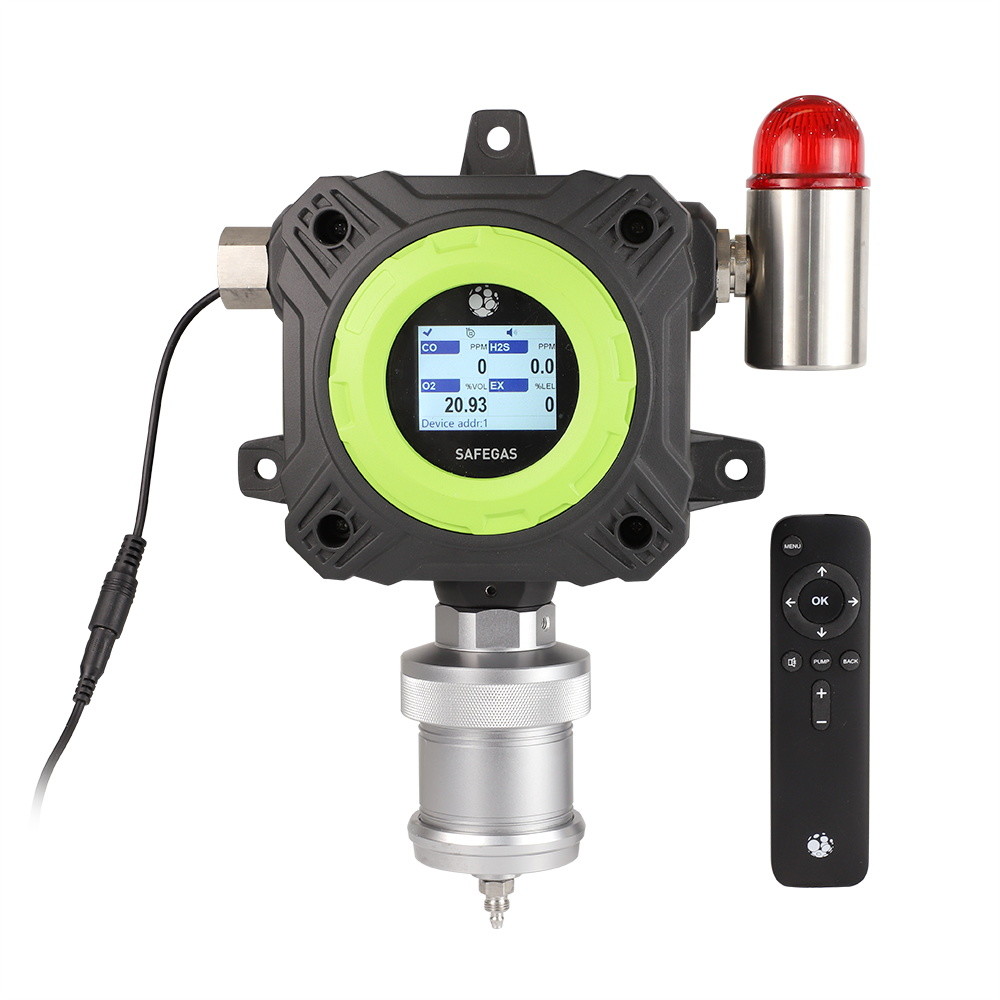

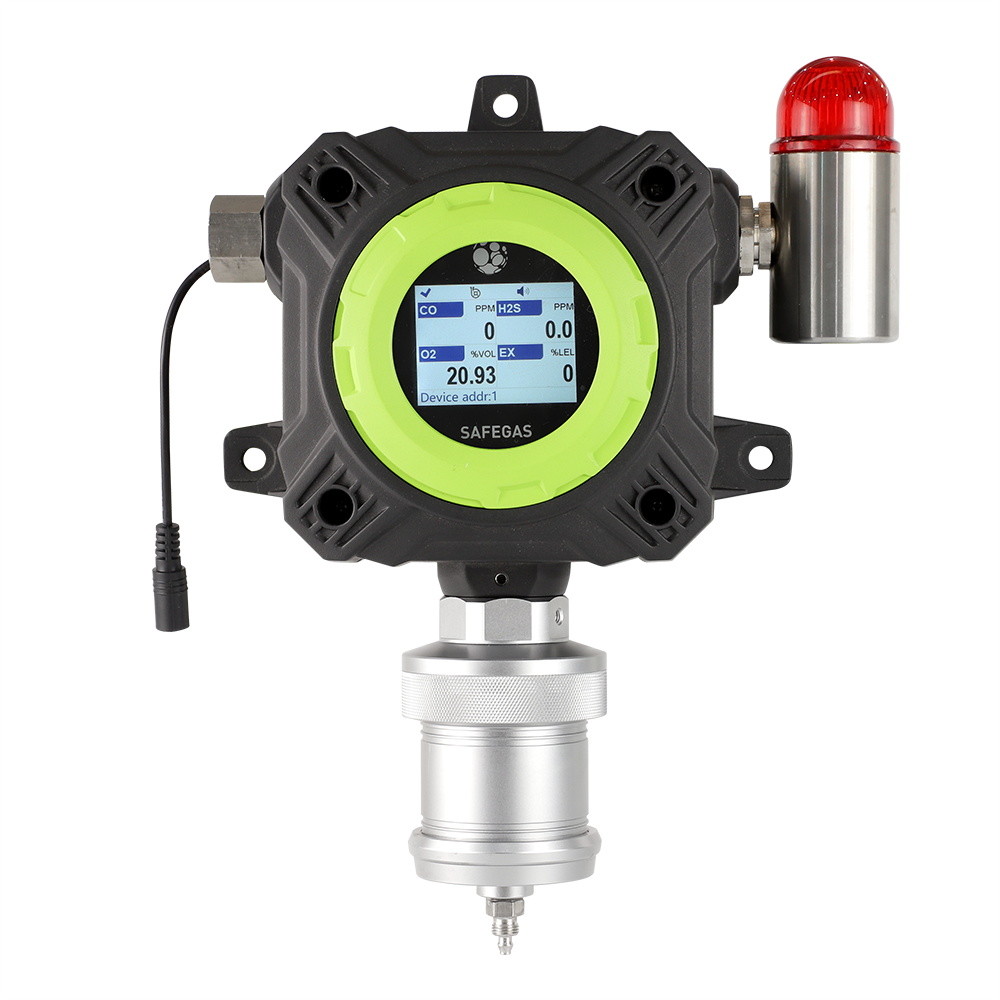

YT-98H-D/YT-98H-D-A series is a fixed single & multi gas detector. It is able detect 1-6 kinds of gases simultaneously and continuously. With IECEx, ATEX certified and noncontact magnetic wand design, it can be installed and operated in hazardous areas. It supports 3-wire 4-20mA, RS485 Modbus, relay and optional Hart signal output, making it compatible with most control systems. With optional wireless data transmission so user can view real time data on laptop, mobile phone remotely.
| Gas Detected: | VOC, O2, LEL, Toxic gases, etc |
|---|---|
| Detection Principle: | PID, Electrochemical, IR, catalytic combustion, etc |
| Measure range: | To be specified |
| Resolution: | To be specified |
| Accuracy: | ≤±2%FS (depending on the specific sensor) |
| Response time (T90): | 20s (depending on the specific sensor) |
| Repeatability: | ≤±1% |
| Pump flow: | 0.5 L/Min |
| Zero shift: | ≤±1%(F.S./year) |
| Display: | 2.4-inch color display, resolution 320*240 |
| Display content: | gas molecular formula, concentration, unit, pump status, etc |
| Alarm (Optional): | buzzer, alarm status prompt on the display screen, high and low alarm values can be set by customer |
| Language: | Chinese and English |
| Communication and data download: | With PC software, history data can be downloaded, stored, printed, and analyzed in computer (optional) |
| Temperature: | –10℃~55℃ |
| Humidity: | 0-95%RH (no condensation) |
| Case: | Die-cast aluminum |
| Power: | 12-24V DC |
| Dimensions: | 286*202*96mm (H x W x D) |
| Weight: | 3.4kg (3.8kg with alarm light) |
| Explosionproof grade: | Ex d IIC T6 Gb |
Established in 2010, Shenzhen Yuante Technology Co., Limited specializes in the design, production, and sales of high-end gas detection equipment and systems for 16 years. With gas detectors as our core product, we offer complete production lines and solutions tailored to various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Through rapid development over the past decade, Yuante has become an influential supplier in the industry. We adhere to the management philosophy: "Market is orientation; Innovation is motivation; Quality to survival; Development to growth."
With a friendly, open, and strict corporate culture, we've assembled talented teams in management and R&D. Our staff collaborates effectively in product development, production, and maintenance, embodying our customer-oriented philosophy to earn client trust and support.
The essence of a detector is accuracy and faster response. Leveraging years of measurement experience and unique solutions, through independent R&D and learning overseas technologies, our products surpass domestic brands and compete with global leaders. We continuously seek development to meet diverse customer demands.
We are based in Guangdong, China, established in 2010. Our primary markets include Southeast Asia (20%), North America (17%), South America (15%), South Asia (10%), Eastern Asia (10%), Mid East (10%), with smaller percentages in other global regions. Our office employs 51-100 people.
Portable Gas Detectors, Fixed Gas Detectors, Gas Analyzers, Multi Gas Detectors
We have an independent dust-free production workshop, modern equipment, and professional staff. We offer competitive pricing and diversified sales strategies. Our 24/7 service provides rapid response and technical guidance.
