| 起源の場所: | 中国 |
|---|---|
| ブランド名: | SAFEGAS |
| 証明: | ATEX/IECEX |
| モデル番号: | YT-98H |
| 最小注文数量: | 1 |
| 価格: | 交渉可能 |
| パッケージの詳細: | カートン（43*27*15cm） |
| 受渡し時間: | 3営業日 |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 月に3000個 |
| 検出されたガス: | HCL | 検出原理: | 電気化学 |
|---|---|---|---|
| 力: | 12から24V DC | 正確さ: | ≤±2-5％fs |
| 応答時間（T90）: | 15歳から30歳 | 再現性: | ≤±1％ |
| ポンプの流れ: | 0.35-0.5 L/min | 温度: | 20°Cから55°C |
| 湿度（凝縮なし）: | 0~95%RH | オプションアラーム: | 鳴き声,アラーム状態表示 |
| サンプリング方法: | 内部ポンプ付き | ||
| ハイライト: | 12 to 24V DC Power HCL Gas Detector,≤±2-5%FS Accuracy Fixed Gas Detector,15 to 30s Response Time Multi Gas Detector |
||
Hydrogen chloride (HCL) is a colorless, irritating, corrosive and asphyxiating gas that is volatile and unstable. As an important industrial chemical, it's used in manufacturing dyes, fragrances, pharmaceuticals, various chlorides and corrosion inhibitors.
High-purity HCL gas is widely used in the electronics industry. It has a suffocating odor and is highly irritating to the upper respiratory tract, with corrosive effects on eyes, skin, and mucous membranes. Concentration monitoring is essential to prevent leaks and ensure safety. Maximum allowable concentrations: China (MAC) 15 mg/m³ (9.2ppm); US TLV-C 7.5mg/m³ (4.6ppm).
Due to HCL's volatility and instability, a pump-type detector is recommended for faster and more reliable gas absorption and detection.

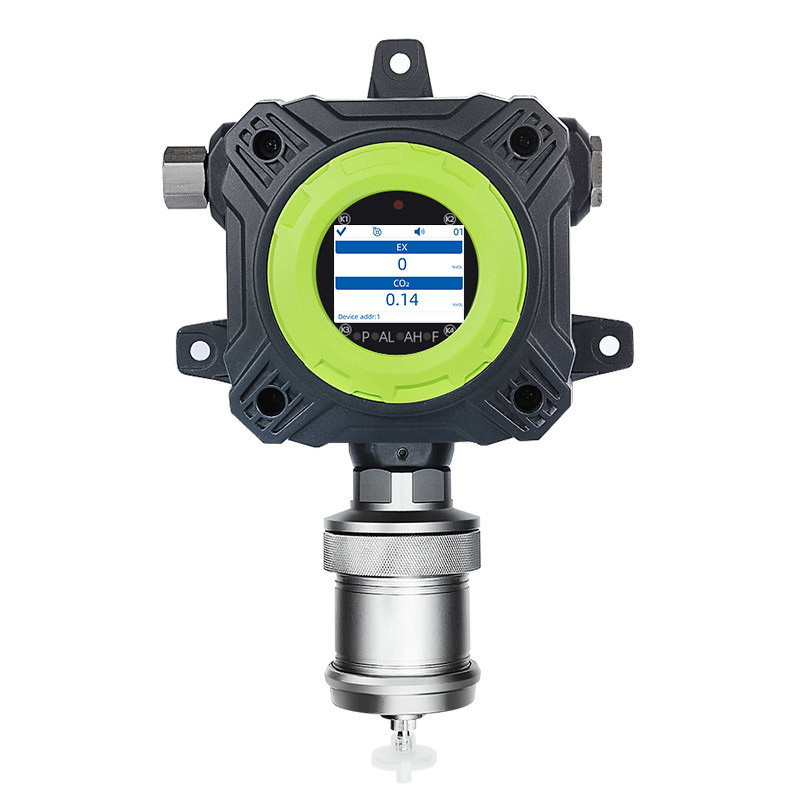

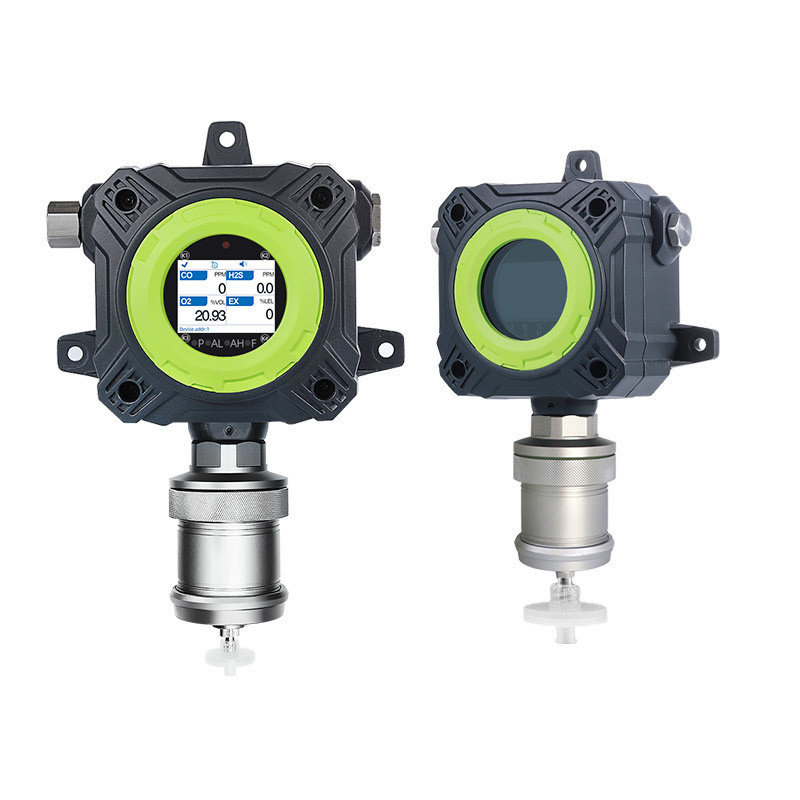

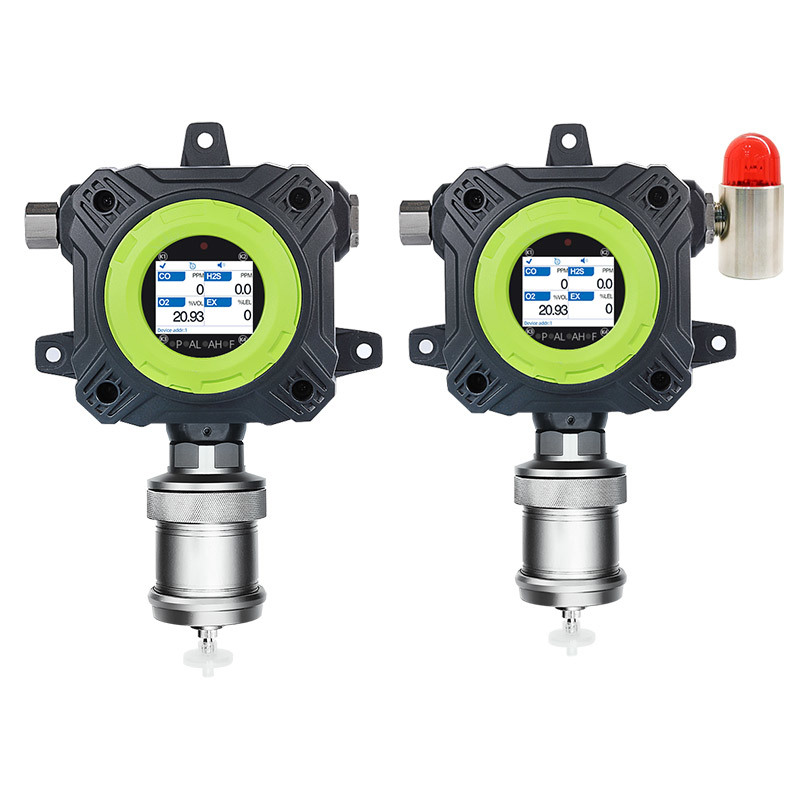

YT-98H/YT-98H-A Fixed Gas Detector is a built-in pump-suction single & multi-gas detector with IECEx and ATEX certification. Featuring non-contact magnetic wand design, it's suitable for installation in explosion-proof areas and oil & gas industries.

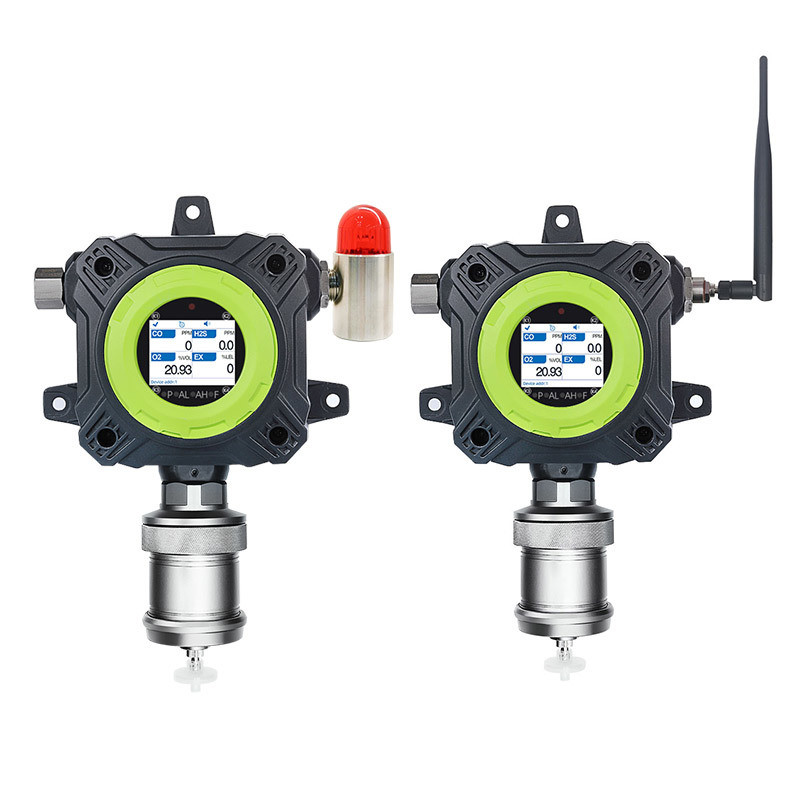

The detector offers 3-wire 4-20mA output with relays, HART and Modbus protocols for compatibility with most control systems. Optional wireless functionality enables remote data viewing on laptops, mobile phones or cloud systems.
| Parameter | Specification |
|---|---|
| Gas Detected | HCL |
| Detection Principle | Electrochemical |
| Installation Method | Wall-mounted, piping type, flow-type (environment dependent) |
| Measurement Range | 0-10, 20, 50, 100PPM; 0-500, 1000, 2000PPM |
| Resolution | 0.1PPM, 1PPM |
| Accuracy | ≤±2-5%FS (sensor dependent) |
| Signal Output | 4-20mA, RS485, relay |
| Response Time (T90) | 15-30s (sensor dependent) |
| Recovery Time | ≤10S |
| Repeatability | ≤±1% |
| Display | 2.4-inch color (320*240 resolution) |
| Operating Language | English/Chinese |
| Display Content | Gas molecular formula, concentration, unit, pump status |
| Temperature Range | -20°C to 55°C |
| Humidity Range | 0-95%RH |
| Explosion-Proof | IECEX:Ex db IIC T6 Gb; ATEX:Ex db IIC T6 Gb |
| Protection Rating | IP66 |
| Alarm Mode | Sound, light |
| Operating Time | 24h |
| Dimensions | 43*27*15cm |
| Weight | 4.6kg |
Safegas specializes in environmental monitoring equipment and systems for 16 years, with gas detectors as our core product. We provide complete production lines and solutions tailored to various industries including Oil, Chemical, Pharmaceutical, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Our management philosophy emphasizes market orientation, innovation, quality survival, and development growth. With a professional team and customer-focused approach, we've earned trust in domestic and international markets.
A1: We are a professional manufacturer specializing in gas detectors for over 10 years.
A2: Typically 1 piece.
A3: Our products use imported sensors and components, with full certifications.
A4: 1 year warranty from factory date, with lifetime maintenance support.
