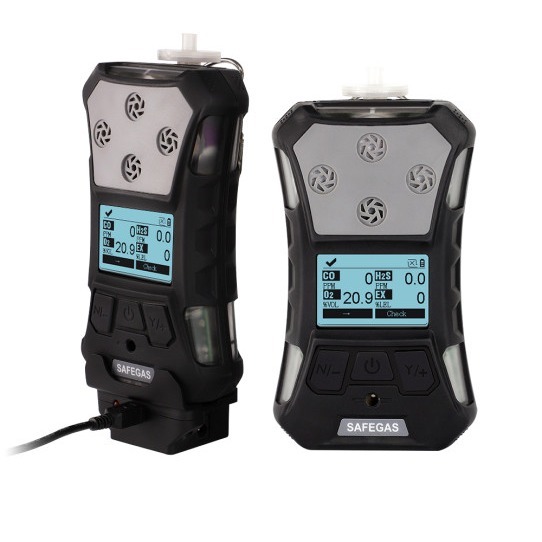

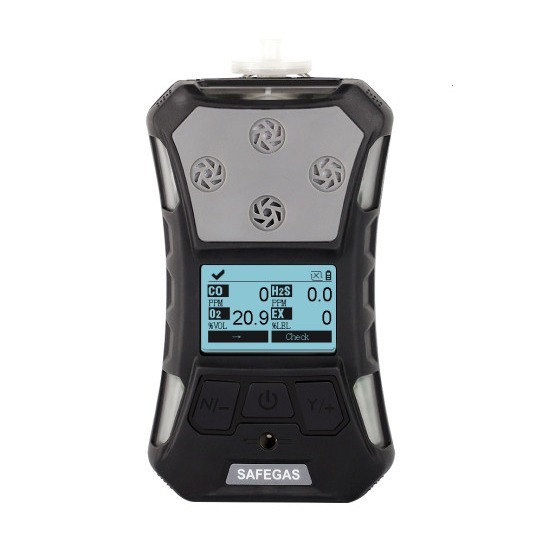

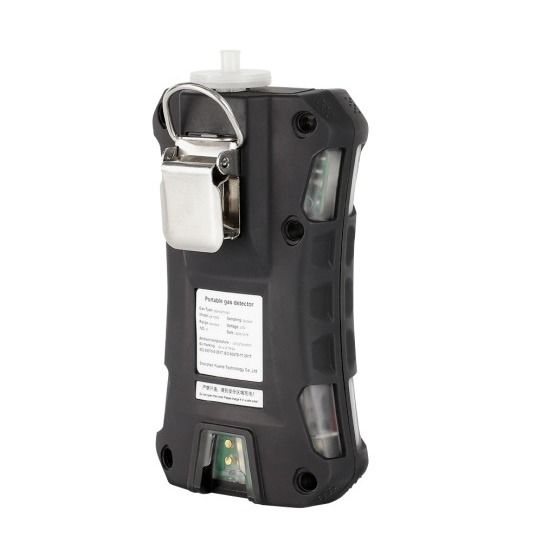

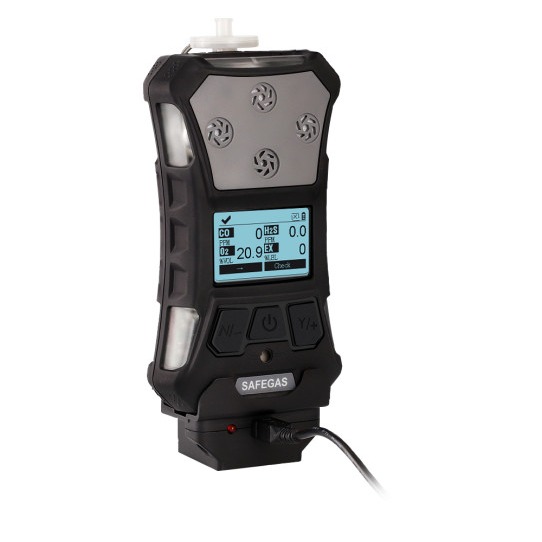

SAFEGAS Multi Gas Detector Portable O2 LEL H2S CO CO2 Gas Concentration 6 In 1 Device
Product Overview
The SKY3000 series is a high-performance portable gas detector capable of simultaneously detecting multiple gases including oxygen compounds, VOC, combustible gases, and toxic gases. This advanced device features man-down alarm functionality and user-friendly operation with one-key security detection, one-key storage, and automatic screen rotation.
With optional Bluetooth transmission, safety personnel can access real-time data and alarm status remotely. The instrument operates primarily in suction mode and automatically switches to diffusion sampling during pump failure or emergency situations, providing enhanced protection.
- Gas Detected
- To be specified
- Detection Principle
- To be specified
- Measure range
- Specified according to application.
- Resolution
- Specified according to application.
- Response time
- ≤20 seconds
- Precision
- ≤±1-5%F.S except for special gases
- Language
- Chinese/English/Russian/Polish (More language can be customized)
- Automatically test and calibrate after power-on
- Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
- Unit
- PPM, mg/m³, %LEL, %VOL
- Display
- LCD (160 x 96), 180° rotate
- Backlight
- Turned on automatically when alarming, the backlight time can be manually set
- Data record
- 100,000 readings, the storage interval is adjustable from 5 to 3600 seconds, data can be exported to PC no need software
- Alarm
- 95dB@30cm buzzer alarm, flashing red LED alarm and vibration alarm. Alarm status indication on the screen, alarm latched; diagnostic alarm and battery under-voltage alarm, pump failure alarm; man down alarm
- Battery
- 3.7V rechargeable lithium battery, battery capacity 2200mA
- Working hours
- More than 15 hours in continuous pumping mode
- Charger
- Travel charger with DC interface, charging time ≥ 4 hours
- Working temperature
- -20℃~+50℃
- Explosion-proof grade
- IECEx: Ex ia IIC T4 Ga; ATEX: II 1G Ex ia IIC T4 Ga
- Humidity
- 10~90%RH (no condensation)
- Certification (EU regulations)
- 2004/34/UE (ATEX)
- Protection grade
- IP67
- Environmental pressure
- 86~106Kpa
- Size
- 157×84.5×59.5mm (including back clip/water trap filter) (length × width × height)
- Weight
- 365g (including battery, belt clip and filter)
Key Product Advantages
Rugged and Durable Construction
- Withstands 3-meter drop impact
- IP67 protection rating for dust and water resistance
- EMC anti-static interference tested for reliable operation in walkie-talkie environments
Explosion-Proof Circuit Design
- Certified by IECEX, ATEX, and Chinese explosion-proof standards
- Explosion-proof level: Ex ia IIC T4 Ga
- Suitable for explosive gas mixture zones 0, 1, and 2
Multiple Security Protection Features
- Man-down alarm function for underground operator safety
- Password protection prevents unauthorized parameter modification
- Comprehensive safety reminders with sound, light, and vibration alarms
Advanced Detection Capabilities
- Simultaneous detection of 1-4 gases
- Multiple numerical displays: real-time value, TWA, STEL, MAX, MIN
- Large screen with 180-degree automatic rotation
Flexible Detection System
- Built-in powerful sampling pump for fast detection
- External 20m sampling tube for long-distance or confined space detection
- Pump suction and diffusion dual-use functionality
- Water trap filter for effective filtration of water, oil, and dust
User-Friendly Operation
- Intuitive user interface with easy navigation
- Optional Bluetooth for real-time data transmission
- One-click data export for analysis
- Modifiable ID identification for instrument management
Standard Configuration
- Gas detector: 1 piece
- 12V/1A DC power adapter: 1 piece
- USB cable: 1 piece
- User manual: 1 piece
- Warranty card: 1 piece
- Filter: 1 piece
- Aluminum suitcase: 1 piece
Why Choose SAFEGAS?
- R&D team experience: Over 25 years in gas detection technology
- Company certifications: ISO9001, ISO45001 quality management systems
- Product certifications: IECEx (the only one in China), ATEX, CE
- Fast delivery: 5-7 days
- High production capacity: 80,000 units annually
- Professional support: 7*24 hours service from experienced sales staff
Company Profile
SAFEGAS specializes in the design, production, and sales of environmental monitoring equipment and systems for 16 years. With gas detectors as our core product, we provide complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Our management philosophy centers on "Market orientation, Innovation motivation, Quality survival, Development growth." Through friendly, open corporate culture and standardized management, SAFEGAS has assembled talented teams in product development, production, and maintenance, consistently delivering customer-oriented solutions that earn trust and support worldwide.
Leveraging years of measurement experience and continuous technological advancement, SAFEGAS products meet domestic and international standards while competing effectively with overseas brands in quality and performance.
