Safegas Portable Gas Analyzer
Professional instrument for coal combustion flue gas detection including SO2, CO, CO2, NOX, and VOC monitoring.
Product Overview

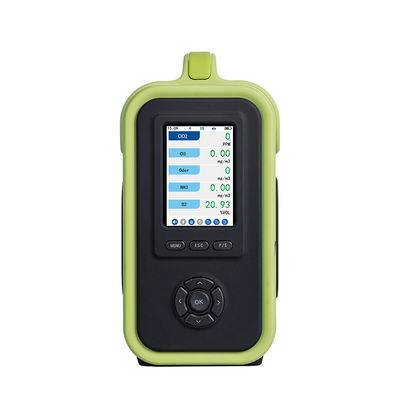

The SKY8000 portable gas analysis instrument is engineered for industrial waste gas monitoring, air pollution source emission detection, boiler flue gas analysis, automobile exhaust testing, and indoor air quality assessment. This versatile instrument can detect 1-18 different gases with flexible module configurations.
Featuring 1-3 selectable modules, each with its own pump, the internal modular structure enables separate air intake for different gases, effectively preventing cross-interference and ensuring accurate measurements.
Key Features

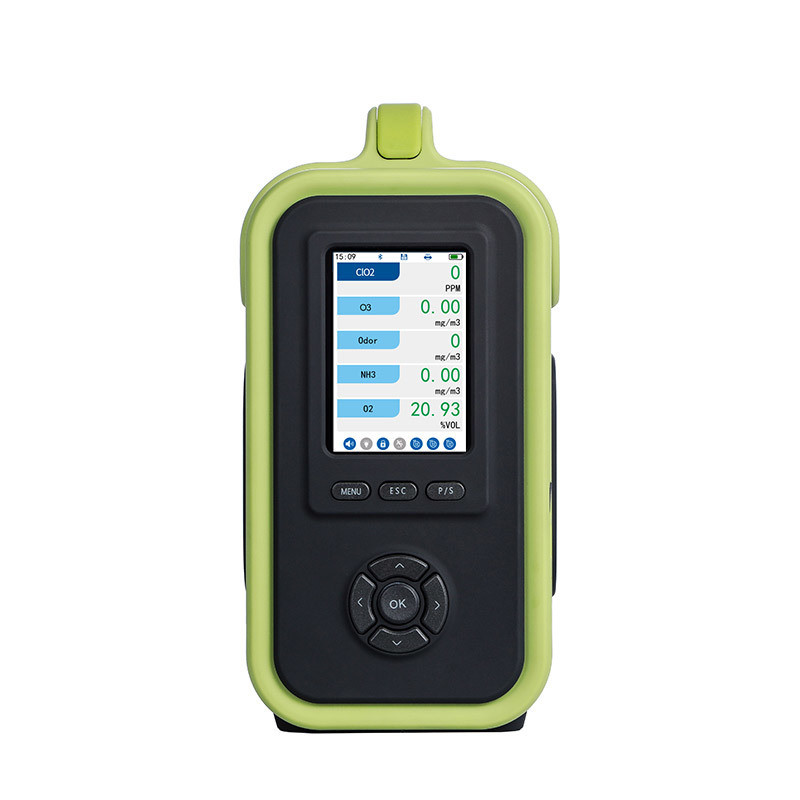

- 3.5-inch high-definition IPS LCD color screen with 150° wide viewing angle
- Chinese and English operation interface for global usability
- Fall alarm, password protection, and safety reminder functions
- Optional high-temperature probe for harsh environments (up to 600°C or 1000°C)
- Large-capacity lithium battery for extended operation
- High-strength engineering materials with ergonomic design
Product Images
Technical Specifications
| Sensors |
Electrochemical (CO, SO2, NOX), Infrared (CO2), PID photo ion principle (VOC) |
| Gas Detection |
CO, SO2, NOX, CO2, VOC |
| Measurement Range |
CO: 0-20,000 PPM; CO2: 0-20% VOL; SO2: 0-5,000 PPM; NOX: 0-5,000 PPM; VOC: 0-5,000 PPM |
| Resolution |
CO: 1 PPM; CO2: 0.001% VOL; SO2: 1 PPM; NOX: 1 PPM; VOC: 1 PPM |
| Display |
Formula, gas concentration data, measurement trend curve, gas curve, battery status, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screenshot status |
| Alarm System |
Buzzer, red LED indicator, alarm status display, fault alarm, pump abnormal alarm, low battery alarm |
| Data Storage |
Independent SD memory card (max 32GB), automatic data recording with customizable time intervals |
| Data Transmission |
RS485 signal output, USB interface data transmission with upper computer software for data download, analysis, and printing |
| Print Function |
Optional internal portable printer or external Bluetooth printer |
| Charging |
Standard Mini-USB charging port with 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer) |
| Language |
Chinese/English |
| Wireless Network |
Optional Bluetooth with 2.4G high frequency and transmission distance less than 10m |
Important: The smoke environment must be equipped with a high-temperature probe gun, resistant to 600°C or 1000°C temperatures. Probe lengths available: 0.3m, 0.7m, and 1m.
Product Advantages
Premium Design & Display

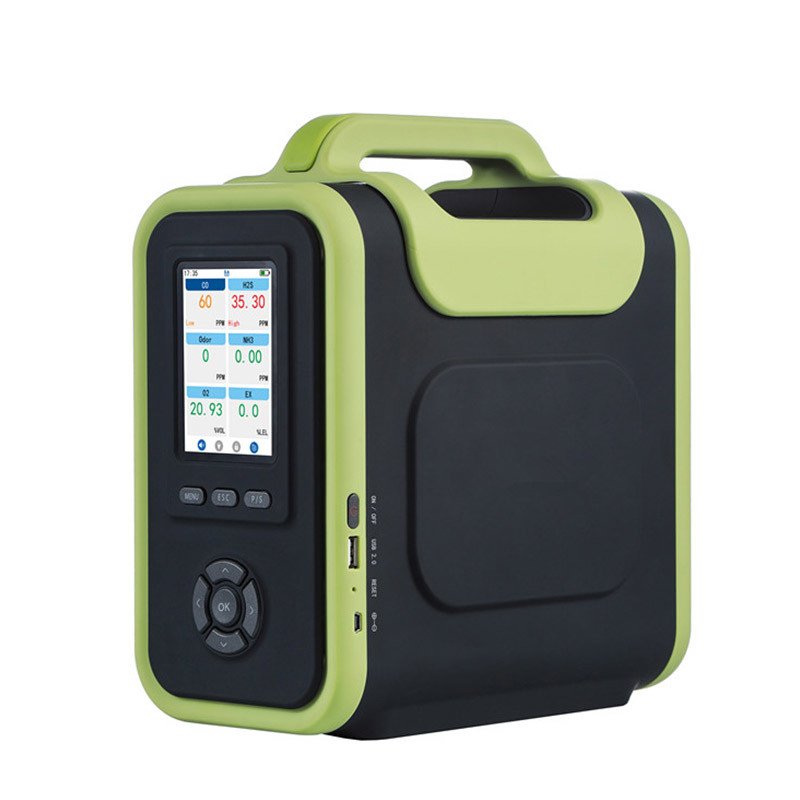

Chassis handle design for easy portability, aviation wear-resistant materials, 3.5-inch high-definition color screen with high resolution and wide viewing angle, user-friendly interface with intuitive interaction.
Modular Internal Structure
Industry-first analytical instrument with patented modular structure. Up to three detection modules, each capable of detecting up to six gases. Independent modules with separate air intake prevent cross-interference for more accurate detection.
High Customizability
Up to 18 sensors available for simultaneous detection and analysis (flue gas customization available for up to 9 gases simultaneously).
Flexible Multi-Pump System
Air supply system with up to three pumps, arbitrary pump switching, cross-gas loss prevention for extended sensor life, and ten different flow rate adjustments for various environmental conditions.
Multiple Display Modes
Supports gas concentration data display and real-time curve display modes with arbitrary switching.
Comprehensive Data Storage
Standard 8G SD memory card with up to seven years continuous storage at 5-second intervals. Historical data and curves viewable directly on instrument or exportable via USB.
Multiple Security Protection
Fall alarm for underground worker safety, password protection against unauthorized parameter changes, safety alerts for operator comfort, and high/low alarm lock for sudden gas concentration changes.
User-Friendly Operation
- PPM/mg/m³ gas unit switching with automatic conversion
- Individual sensor factory reset capability
- Chinese/English language switching
- Timed shutdown function with intelligent settings
- Sensor overload automatic protection

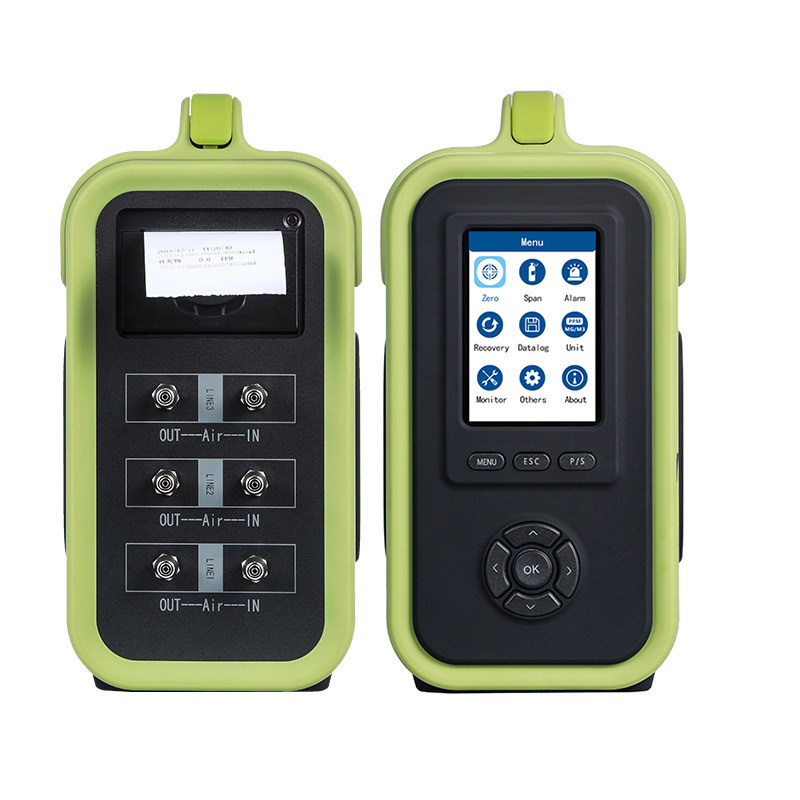

- Optional built-in thermal printer for one-click data printing
- Optional wireless communication for real-time monitoring via computer web client and mobile app
- Optional high-temperature sampling probe up to 1200°C
Standard Accessories
- User manual
- Certificate/warranty card
- 8G SD memory card (larger capacity available by customization)
- Charging adapter
- Water trap filter
- Intake sampling probe
- 1000mm hose

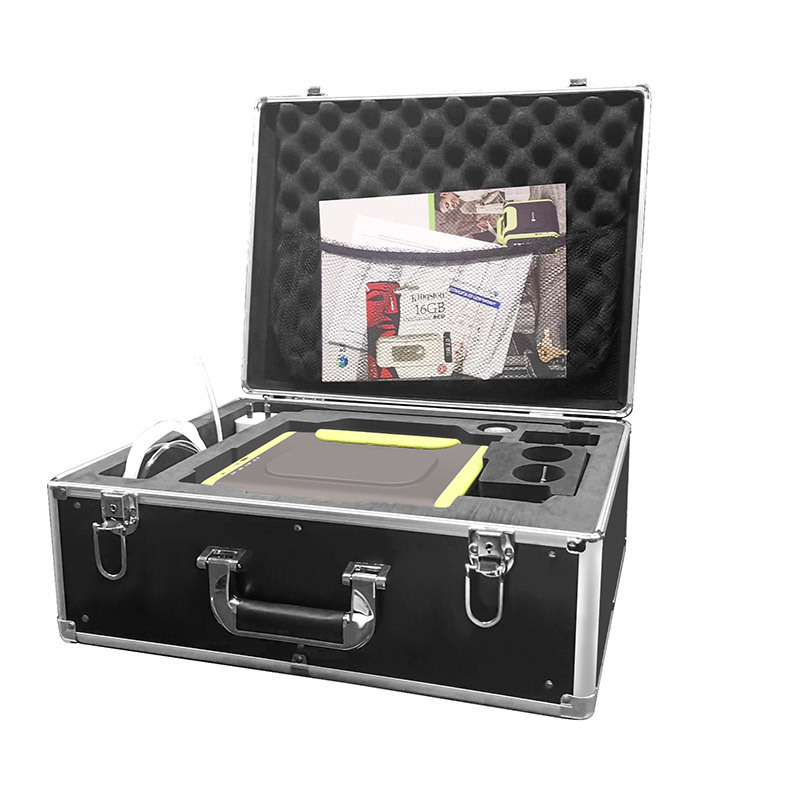

- Professional carrying case (non-toxic, odorless, explosion-proof, waterproof, heat-resistant, corrosion-resistant)
Optional Accessories
- Built-in thermal printer
- High-temperature flue gas detector set
Why Choose Safegas?
- R&D team experience: Over 25 years
- Company certifications: ISO9001, ISO45001
- Product certifications: IECEx (the only one in China), ATEX, CE
- Fast delivery: 5-7 days
- High capacity: 80,000 units annually
- Professional support: 7*24 hours service
Safegas specializes in environmental monitoring equipment and systems with 16 years of industry experience. Our core product line includes comprehensive gas detection solutions for Oil, Chemical, Pharmaceutical, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances industries.
Through continuous development, Safegas has become an influential supplier in domestic and international markets, adhering to our management philosophy: "Market is orientation. Innovation is motivation. Quality to survival. Development to growth."
Leveraging years of measurement experience and innovative solutions, Safegas products compete with international brands through independent R&D, cooperative development, and adoption of the latest overseas technologies.
