CO2 And NH3 Fixed Detectors Wireless Transmission For Refrigeration Chambers
Product Overview
The SG100-D series is an intelligent hot-swappable fixed multi-gas detector designed for easy maintenance after installation. This advanced unit can monitor up to 4 gases simultaneously for continuous monitoring applications. Certified with IECEx and ATEX certifications, it achieves explosion level Ex db IIC T6 intrinsically safe grade. Featuring a magnetic wand design, it enables safe and convenient menu navigation in explosion-prone areas.

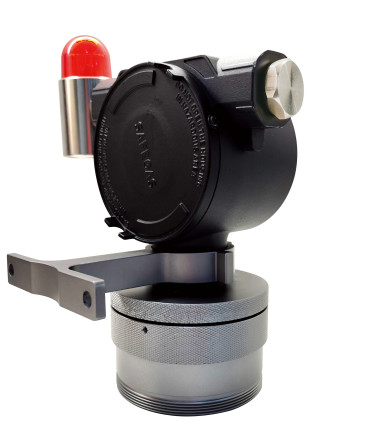

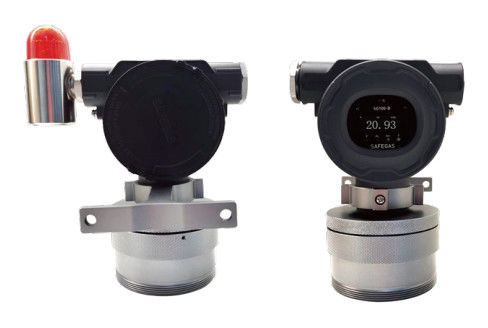

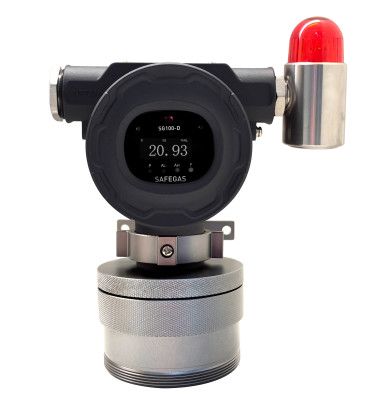

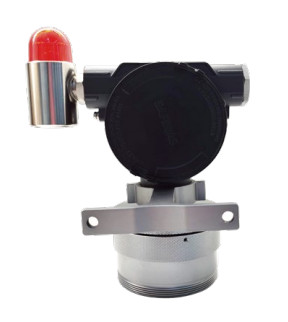

Product Images
Product Advantages
- IP66/IP68 water & dust resistant rating
- Standard 1 set of 4-20 mA current signal (3 wires), RS485 Modbus, and 2 sets of relay signal output
- Optional 4 sets of 4-20 mA current signal (3 wires)
- Optional LORA and 4G wireless transmission modes
- Modular chamber design eliminates need for complete machine disassembly or return for calibration during maintenance
- One-person calibration easily performed using calibration cap
- Quick site installation using mounting plate accessory
Product Specifications
| Detected Gas |
NH3, CO2 |
| Principle |
Electrochemistry And IR |
| Measure Range |
Can Be Customized |
| Resolution |
Can Be Customized |
| Install Method |
Wall-mounted |
| Events |
1000 sets per channel, can download by GPC |
| Precision |
≤±2%FS or ±10% (Depends on sensor) |
| Response time |
T90<60s (Depends on sensor) |
| Repeatability |
±2%F.S |
| Temperature |
-40℃～70℃ (catalytic sensor), -20℃～50℃ (Electrochemistry sensor) |
| Humidity |
10-95%RH (non-condensing) |
| Explosion-Proof |
IECEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb; ATEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb |
| Degree of protection |
IP66/IP68 |
| Power |
12-30V DC |
| Dimensions |
178×129×70mm |
| Weight |
1.4kg (No mounting bracket, alarm light) |
| Approval |
CE, CNEX explosion proof certificate, CMC (China Metrology Certification), IECEx, ATEX |
| Warranty |
12 months |
Standard Configuration
- Gas detector: 1 piece
- Magnetic wand: 1 piece
- User manual: 1 piece
- Certificate of Conformity/Warranty Card: 1 piece
- Mounting plate: 1 piece
- M4 bolt: 3 pieces
- M4 nut: 3 pieces
- M4 Screw pad: 3 pieces
- M4 flat mat: 3 pieces
