| 起源の場所: | 中国 |
|---|---|
| ブランド名: | SAFEGAS |
| 証明: | ATEX/EMC/IECEX |
| モデル番号: | ミニマ |
| 最小注文数量: | 1 |
| 価格: | 交渉可能 |
| パッケージの詳細: | カートン |
| 受渡し時間: | 3営業日 |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 1 か月あたり 3000 個 |
| 検出されたガス: | PH3 | 検出原理: | 拡散 |
|---|---|---|---|
| 測定範囲: | 0-5、20の、50の、100ppm | 解決: | 0.1ppm |
| 正確さ: | ≤±2-5％fs | 応答時間（T90）: | 15歳から30歳 |
| 原理: | 電気化学の主義 | 画面: | ガスの名前,バッテリーの電源,濃度単位,測定値 |
| アラームモード: | 音,光,振動アラーム | アラームの種類: | 低アラーム,高アラーム,STEL,TWA,低バッテリーオプション校正のため,および衝突テストのため |
| 電源モード：: | 3.6V乾電池 (充電不能で交換可能) | 爆発的な認証: | IECEX、ATEX |
| 保護クラス: | IP66/68 | 使用温度: | -20 ℃〜55℃ |
| 動作湿度（非凝縮）: | 0-95%RH | 使用空気圧: | 86〜106kpa |
| 寸法: | 90mm*60mm*33mm (長さ*幅*厚さ) | 体重 (クリップ付き): | 125g |
Phosphine (PH3) has shown excellent performance in pest control. Its mechanism involves strong toxic effects on enzymes in insect and rodent cells. It is commonly used for fumigation in grain storage facilities, but only becomes effective when concentration reaches specific standards.
Phosphine (PH3) is classified as highly toxic gas. This biological activity also affects humans, making it unsafe for personnel to enter grain depots during fumigation. A gas detector enables real-time monitoring of phosphine (PH3) concentration without requiring entry.

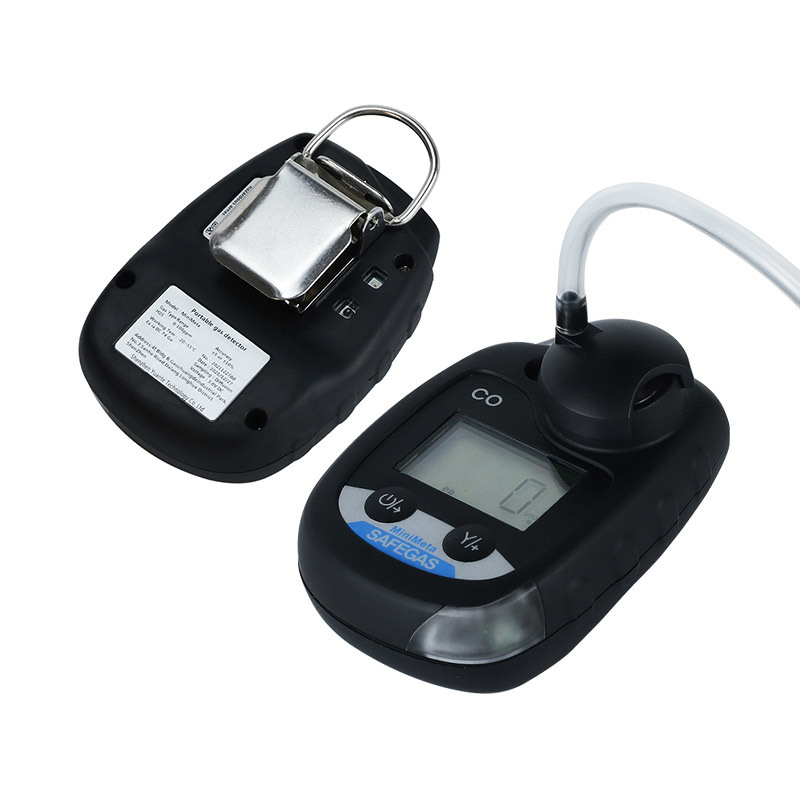

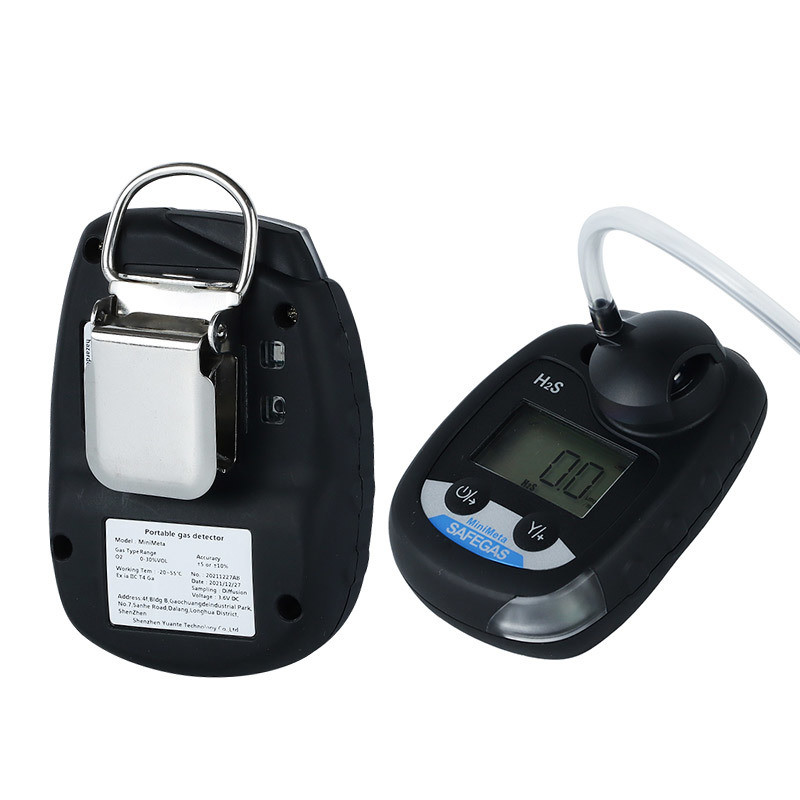

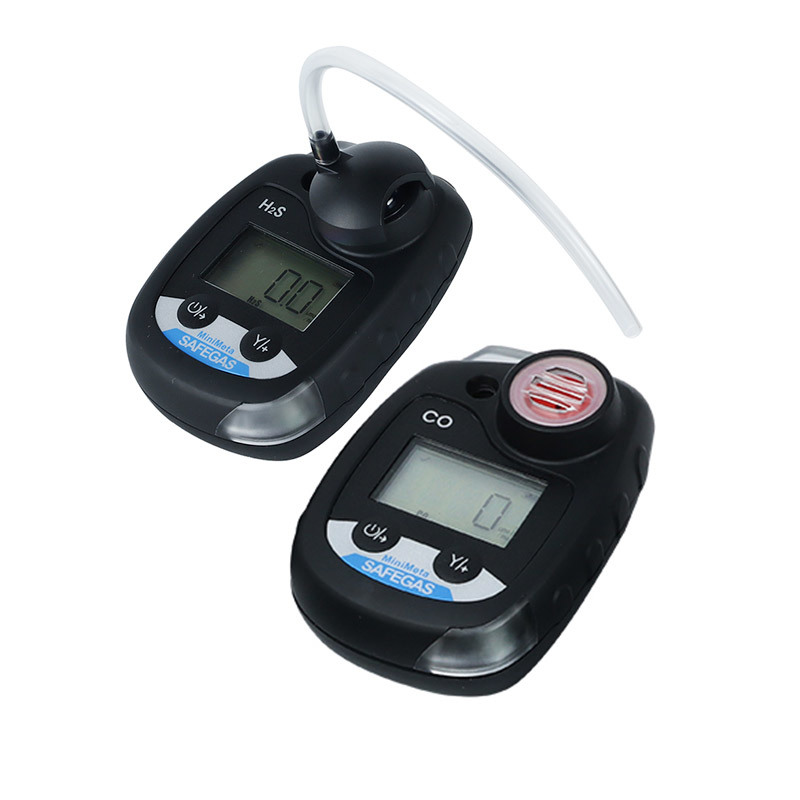

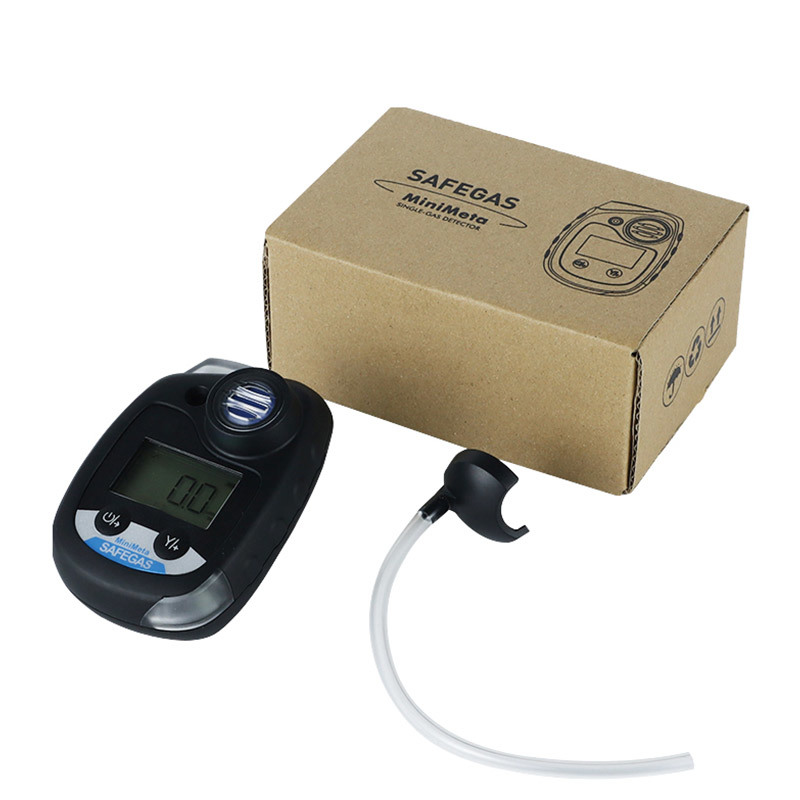

MiniMeta is an IECEX/ATEX/EMC certified single-gas detector capable of detecting hundreds of user-selected toxic gases. Designed for user-friendly operation, it features replaceable batteries and sensors for long-term protection. This cost-effective solution provides a comprehensive gas monitoring system with low long-term ownership costs.
| Parameter | Specification |
|---|---|
| Detect gas | PH3 |
| Sensor type | Electrochemical |
| Sampling method | Diffusion |
| Measure range | 0-5,20,50,100ppm |
| Resolution | 0.1ppm |
| Precision | ≤± 3% F.S. |
| Response Time | ≤30s(T90) |
| Unit | PPM |
| Display | Gas name, concentration unit, measured value, battery level |
| Alarm mode | Sound, light, vibration alarm, customizable high and low alarm values |
| Alarm type | Low alarm, high alarm, STEL, TWA, low battery |
| Display type | LCD Display |
| Operating language | Chinese/English |
| Size | 90*60*33mm |
| Weight | 125g |
| Working Temperature | -20ºC~50ºC |
| Working Humidity | 0-95%RH |
| Working air pressure | 86~106kpa |
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production and sales of gas detection equipment and systems for 16 years. With gas detectors as our core product, we provide complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture and Forestry, and Household Appliances.
Our comprehensive product range includes portable types, fixed types and controller panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Our products hold international explosion-proof certifications from IECEX and ATEX, ensuring quality comparable to international brands, while offering competitive pricing.
Huawei, Coca-Cola, Samsung, Nestlé and more.
A1: We are a professional manufacturer specializing in gas detectors for more than 10 years.
A2: Usually it is 1 piece.
A3: Our products use imported sensors and components and are fully certified.
A4: The warranty period is 1 year from factory date, and we provide lifetime maintenance.
