| 起源の場所: | 中国 |
|---|---|
| ブランド名: | Safegas |
| 証明: | ATEX IECEX |
| モデル番号: | SG100 |
| 最小注文数量: | 1 |
| 価格: | 430USD |
| パッケージの詳細: | カートン |
| 受渡し時間: | 3～10日 |
| 支払条件: | T/T |
| 供給の能力: | 1000個/日 |
| 検出されたガス: | SO2 | 測定範囲: | 0-100ppm |
|---|---|---|---|
| 解決: | 0.1ppm | 保護等級対象者: | IP66IP68 |
| 爆発的な認証: | IECEX,ATEX,CE | ワイヤレス（オプション）: | LORAまたは4Gをサポートします |
| 通信モード: | 4-20MA rs485 1〜5V、オプションのハート | 使用温度: | –20 ℃～50℃ |
| リレー: | 低/高/故障アラーム・リレーを含む3つのリレー (オプション) | サイズ: | 157.8x128.8x69.6mm |
| 重さ: | 1.0kg |

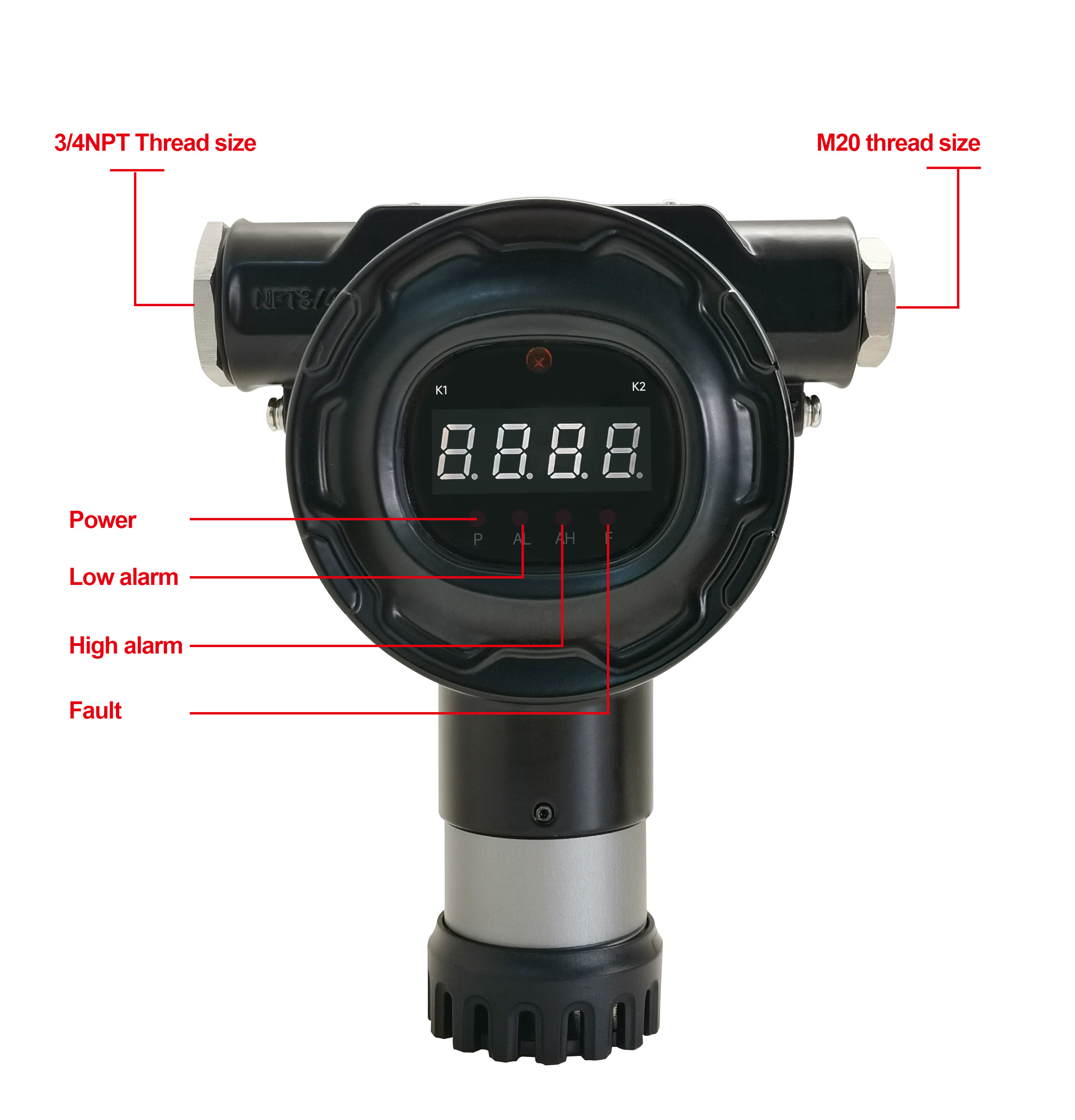

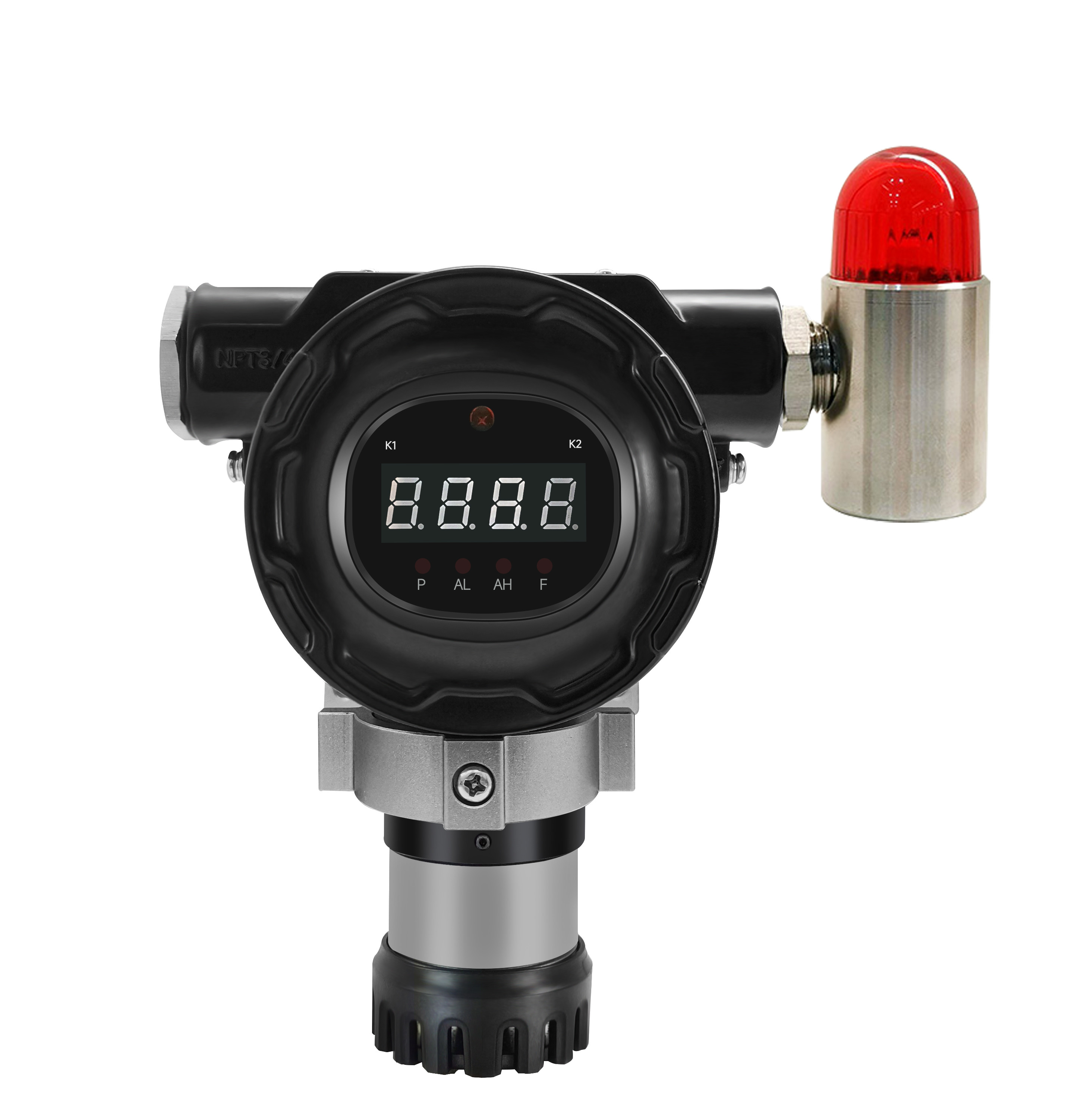

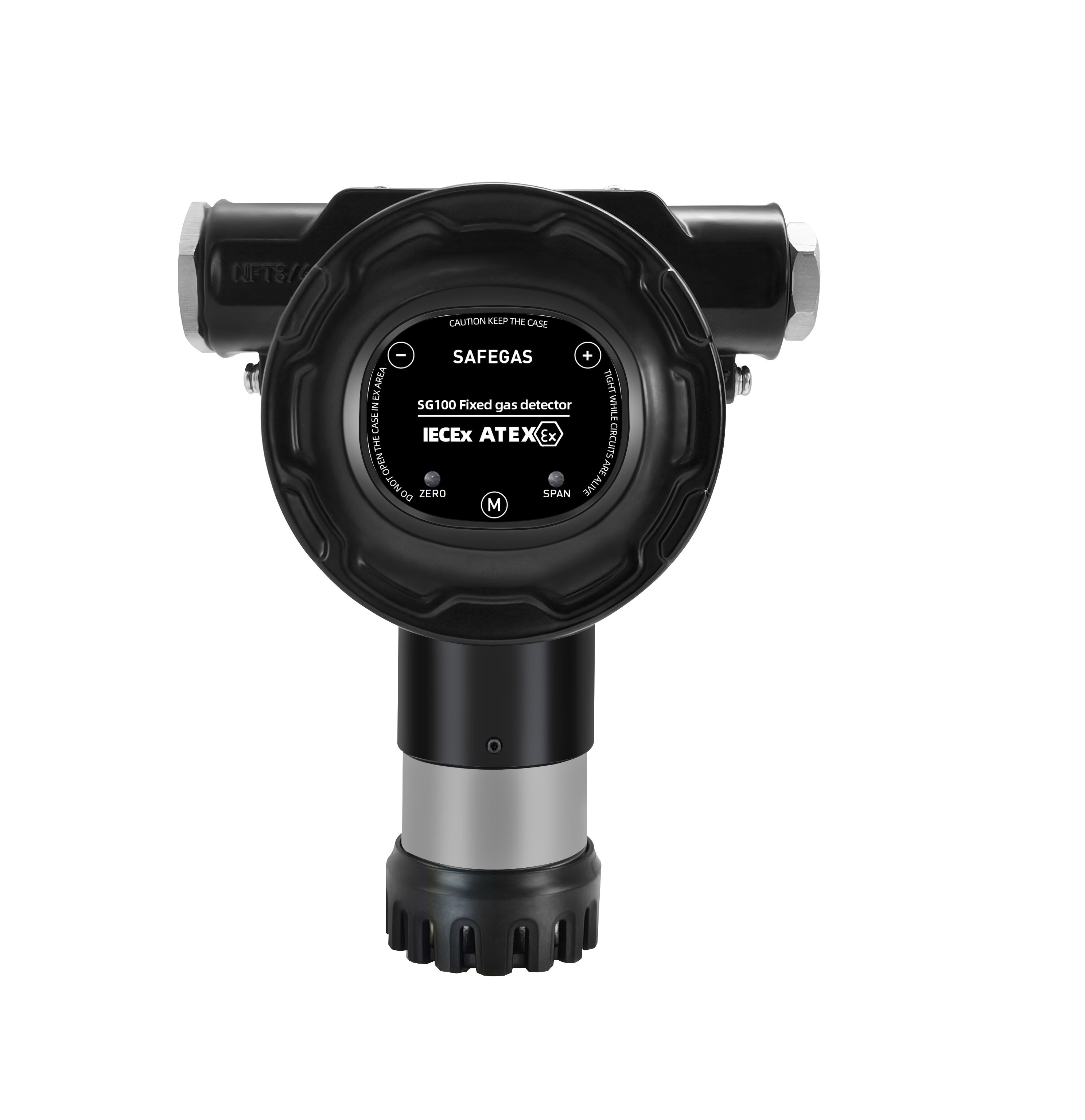

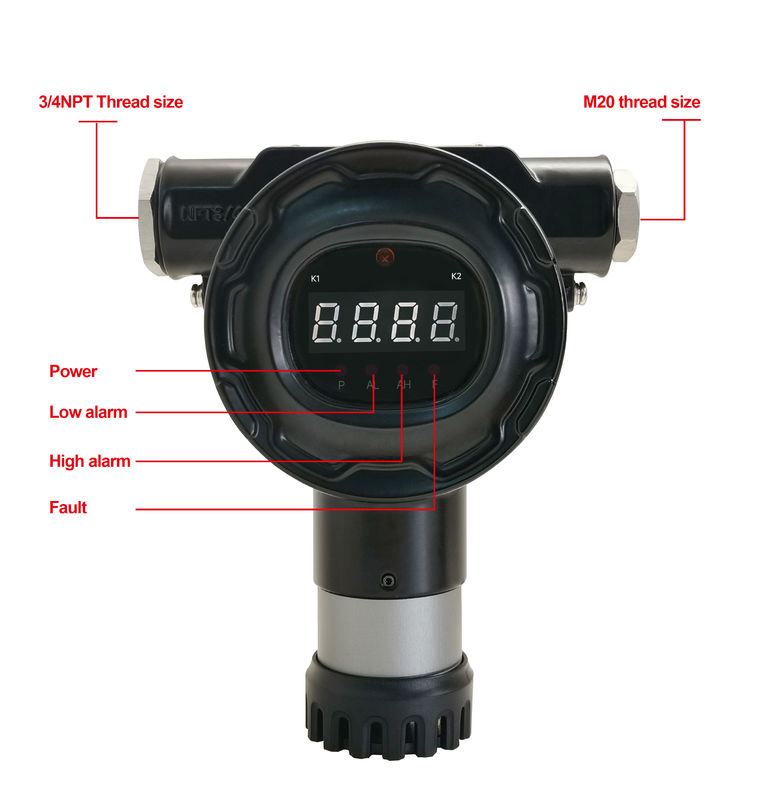

The SG100 Fixed Gas Detector provides reliable continuous monitoring of EX and industrial environments with advanced alarm functionality. IECEx and ATEX certified with intrinsically safe explosion grade.
| Parameter | Specification |
|---|---|
| Detected Gas | SO2 |
| Measurement Range | 0-100PPM |
| Installation Method | Wall-mounted, piping type, flow-type |
| Output Signal | 4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional) |
| Precision | ≤±1%F.S. (to be specialized) |
| Zero Shift | ≤±1%(F.S./year) |
| Display | 4 digits Nixie tube display |
| Connection Mode | G3/4 external thread explosion-proof flexible pipe |
| Thread Size | Standard M20*1.5, 3/4NPT |
| Temperature Range | -20℃～50℃ |
| Humidity Range | 10-95%RH (non-condensing) |
| Explosion-Proof Rating | Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb |
| Protection Degree | IP66/IP68 |
| Material | Sensor housing: aluminum alloy or 316 stainless steel |
| Power Supply | 12-24V DC |
| Dimensions | 158*129*70mm |
| Weight | ≤1kg |
| Certifications | CE, CNEX explosion proof certificate, CMC, IECEx, ATEX |
| Warranty | 12 months |
The SG100 series represents a cost-effective solution for continuous monitoring of toxic gases, oxygen, flammable substances, and VOC gases. IECEx and ATEX certified with intrinsically safe explosion grade, this detector features 2-wire or 3-wire 4-20mA analog output, RS485 modbus output, and optional HART output for compatibility with most control systems. Optional wireless data transmission enables remote data review and download. Supports both magnetic and remote control for flexible configuration.
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
As a professional gas detector manufacturer, we maintain complete control over the entire process from design and R&D to production and sales, ensuring consistent product quality. Our achievements include:
Our products hold IECEx and ATEX explosion-proof certifications, making them suitable for hazardous areas including mines, underground facilities, and oil plants. We are the first and currently the only manufacturer in China to obtain these certifications.
We utilize imported core components from leading brands, ensuring detection accuracy, product stability, and extended service life to protect customer safety.
Our efficient supply chain ensures rapid delivery: 3 days for orders under 10 units and 15 days for orders exceeding 100 units under normal circumstances.
