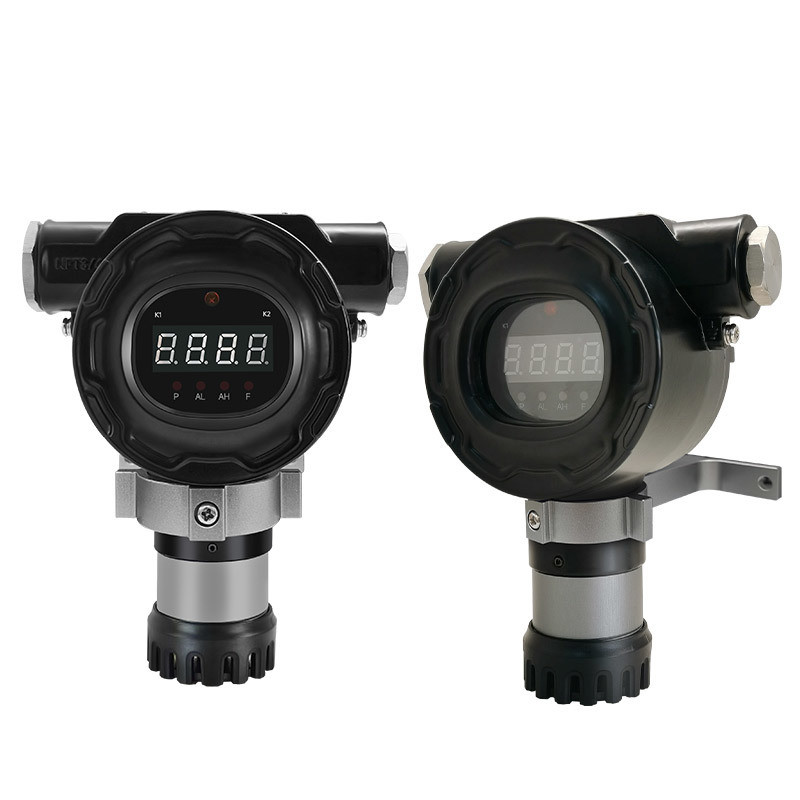

SG100-R Fixed Remote Gas Detector for CH4 with 0–100%LEL Range 1%LEL Resolution and Transmitter Sensor Separation Up To 1000m

Advanced fixed remote gas detection system designed for methane (CH₄) monitoring with extended distance capability between transmitter and sensor.

A remote fixed gas detector where the sensor can be placed up to 1000 meters away from the transmitter. Ideal for duct pipelines, heavy gases (NH₃, H₂, etc.), or hard to access areas. Detects methane (CH₄) from 0–100%LEL with 1%LEL resolution using a catalytic bead sensor. Features IECEx/ATEX certification (Ex db IIC T6), IP66/IP68 protection, 3 relays (low/high/fault), 4 20mA, RS485, and LED display. Configured via non intrusive magnetic wand or remote control. Comes with mounting bracket.

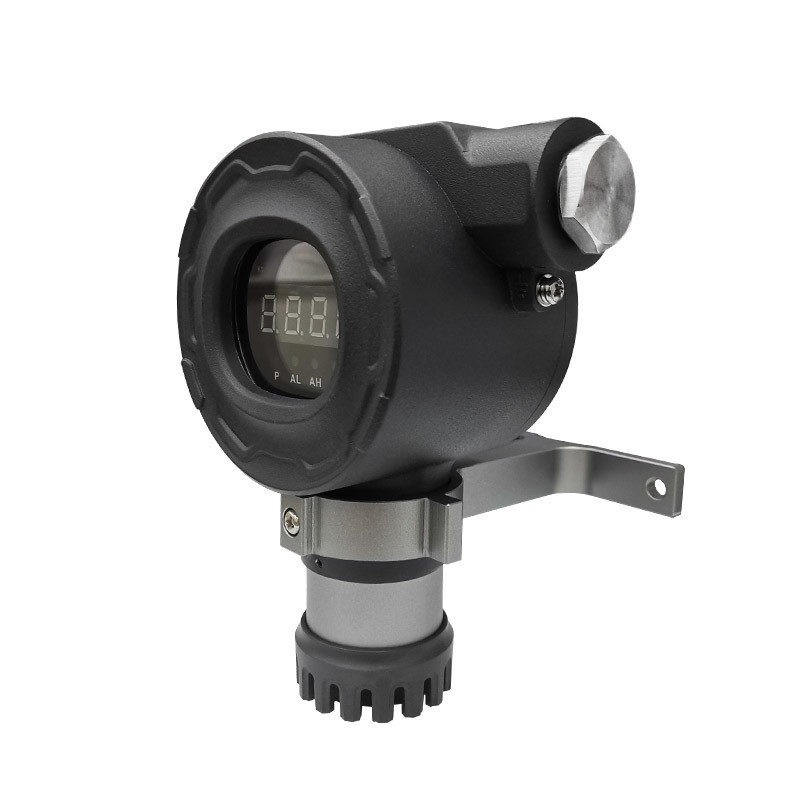

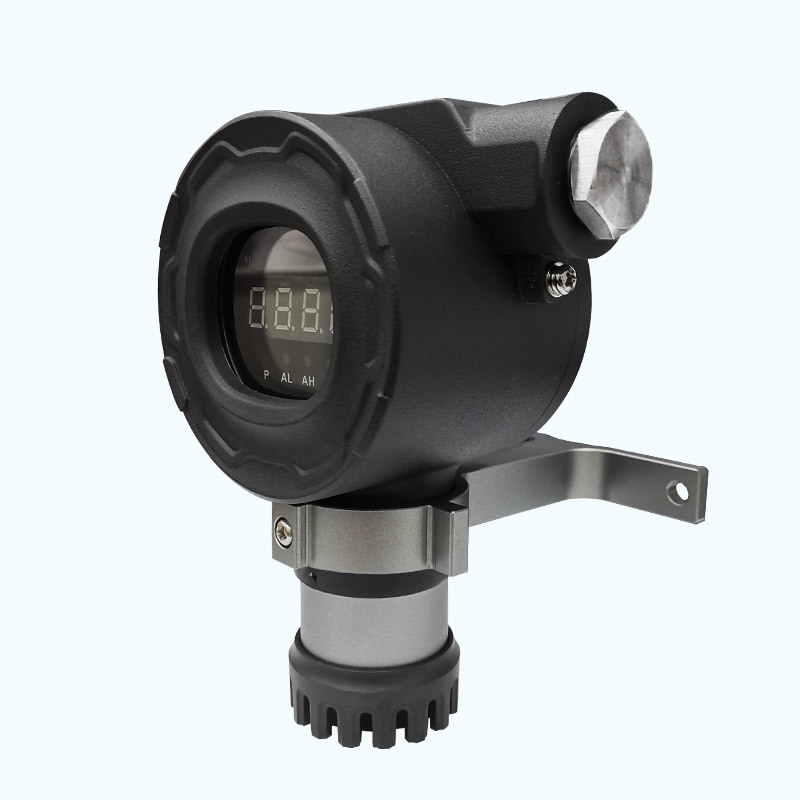

The SG100-R is a gas transmitter designed for use with remotely mounted gas sensors. This configuration is ideal when the sensor must be placed in a duct, pipeline, or where the gas is heavier than air (e.g., NH₃, H₂), while the transmitter is mounted at a convenient, accessible location for viewing the display and performing configuration.

Taking methane (CH₄) as an example, the SG100-R uses a catalytic combustion sensor to measure concentrations from 0–100%LEL with a resolution of 1%LEL. Accuracy is ≤ ±2–5% FS (depending on sensor).

The transmitter connects to the sensor via RS485, supporting distances up to 1000 meters. It is compatible with hundreds of gas sensor types – catalytic, IR, electrochemical, PID, etc.

Outputs include 3 wire 4 20mA, RS485 Modbus, and 3 relay outputs (low alarm, high alarm, fault alarm). The LED display shows real time readings. Configuration is safe and non intrusive using a magnetic wand or optional remote control – no need to open the enclosure in hazardous areas.

The housing is die cast aluminum (SS316 optional). Protection rating IP66/IP68 ensures reliable operation in dusty, wet, or submerged environments. The unit is IECEx/ATEX certified with explosion proof grade Ex db IIC T6 Gb.

Methane is the primary component of natural gas. It is colorless, odorless, and highly flammable. In concentrations between 5% and 15% by volume in air, it forms an explosive mixture. The LEL (Lower Explosive Limit) of methane is 5% VOL, which corresponds to 100% LEL on the detector. Therefore, measuring 0–100%LEL directly indicates how close the atmosphere is to becoming explosive. Common sources include natural gas pipelines, landfills, coal mines, and biogas plants. The SG100 R helps provide early warning of flammable leaks, especially in remote or hard to reach locations.

• Remote sensor placement – Up to 1000 meters between sensor and transmitter; ideal for ducts, heavy gases, or inaccessible areas.
• IECEx/ATEX certified – Ex db IIC T6 Gb for Zone 1/2 hazardous areas.
• IP66/IP68 protection – Waterproof, dustproof, and submersible.
• Multiple outputs – 3-wire 4-20mA, RS485, and 3 relays (low/high/fault).
• Wide sensor compatibility – Catalytic, IR, electrochemical, PID – hundreds of gas types.
• Non-intrusive configuration – Magnetic wand or remote control – safe for explosive atmospheres.
• LED display – Local concentration readout.

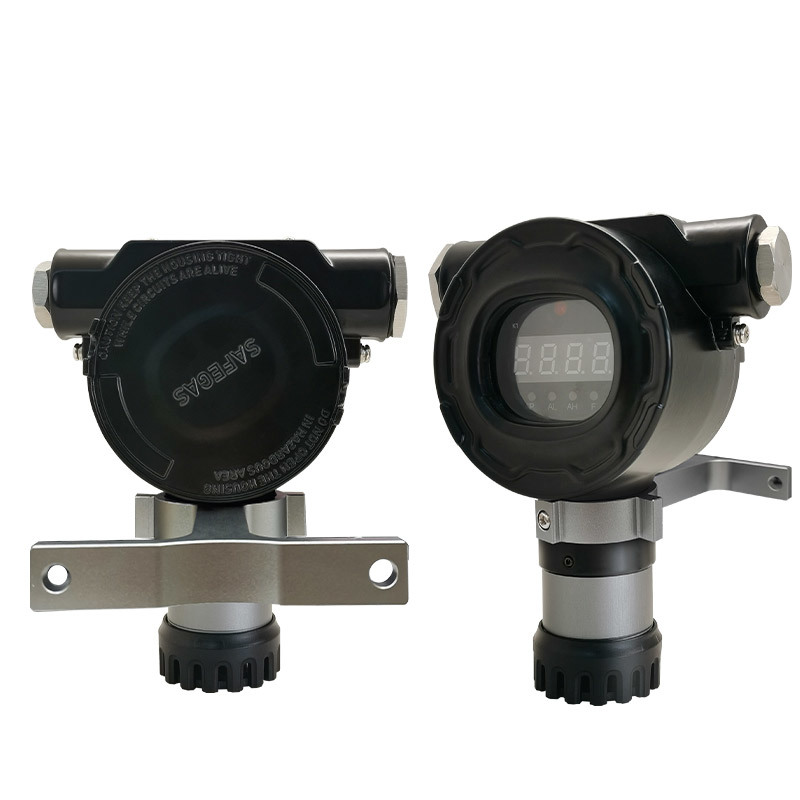

• Robust enclosure – Die-cast aluminum (SS316 optional).
• Easy installation – Comes with mounting bracket; standard 4NPT & M20 cable entries.
• Wide operating temperature – Catalytic sensor works from -40°C to +70°C.

• Duct pipelines – Monitor gas inside ventilation or exhaust ducts.
• Heavy gas detection – Gases like NH₃, H₂, or H₂S that settle at low points; place sensor near floor, transmitter at eye level.
• Confined space entry – Sensor inside tank/vessel, transmitter outside for safe viewing.
• Landfills & biogas plants – Methane monitoring in collection wells or digesters.
• Natural gas compressor stations – Remote sensor in valve pits.
• Oil & gas refineries – Monitor fugitive emissions in hard to access areas.
• Wastewater treatment – Digester gas (methane) monitoring.
• Coal mines – Remote sensing in return airways or goaf areas.

1. How far can the sensor be from the transmitter?
   Up to 1000 meters using RS485 communication.
2. Can I use the SG100-R with other gases besides methane?
   Yes. It supports hundreds of gas sensors: catalytic (flammables), IR (CO₂, CH₄), electrochemical (toxic), PID (VOC). Contact us for specific gas configurations.
3. Does the transmitter have a display?
   Yes, an LED display shows real time gas concentration.
4. How do I configure the alarm set points without opening the enclosure?
   Use the included magnetic wand (non intrusive) or optional remote control – safe for hazardous areas.
5. What relays are available?
   Three relays: low alarm, high alarm, and fault alarm. They can directly control external alarms, fans, or solenoid valves.
6. What is the protection rating?
   IP66/IP68 – dust tight, protected against powerful water jets, and submersible.
7. What is the warranty period?
   1 year for the transmitter and sensor (consumables may have shorter warranty).
8. Do I need a separate power supply for the sensor?
   No. The transmitter powers the remote sensor via the RS485 connection.
9. Can I mount the sensor in a duct or pipeline?
   Yes. The remote sensor can be installed in ducts, stacks, or pipes; the transmitter is mounted in a safe, accessible location.
10. Is the SG100-R certified for explosive atmospheres?
    Yes. It has IECEx and ATEX Ex db IIC T6 Gb certification for Zone 1 and Zone 2 hazardous areas.
