Name: SKY2000 Portable Pumping CO Gas Detector with IP66 Protection and Optional Data Logging
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: SKY2000
Price: 2,210.00 USD
Availability: InStock

詳細情報

検出されたガス:	CO	測定範囲:	0～500ppm / 0～1000ppm
解決:	1 PPM	応答時間:	≤20s
保護等級:	IP66	動作温度:	-20℃～50℃
重さ:	300 g	検出原理:	電気化学
動作言語:	中国語/英語

製品の説明

SKY2000 Portable Pumping Carbon Monoxide (CO) Gas Detector With IP66, Optional Data Logging

SKY2000 is a fast-response, high-precision portable gas detector designed for carbon monoxide (CO) detection. It uses a built-in sampling pump for active gas sampling, equipped with an electrochemical sensor supporting dual ranges 0-500 ppm / 0-1000 ppm and resolution 1 ppm. With professional explosion-proof certification, IP66 protection and triple alarm, it provides reliable safety monitoring for industrial sites and confined spaces.

Product Overview

SKY2000 is a compact and robust portable pumping gas detector optimized for carbon monoxide measurement. It features a high-flow built-in sampling pump to ensure fast gas intake and stable response. The detector is equipped with an LCD dot matrix display with backlight, supports zero calibration and span calibration to maintain long-term accuracy.

It provides optional data logging that can store up to 100,000 readings and export data to a PC via USB. It supports one-key factory reset, gas unit switching, and sound-light-vibration triple alarm to ensure timely warning. The whole machine adopts high-intensity engineering plastic housing, with explosion-proof grade Ex ia IIC T4 Ga and protection grade IP66, suitable for various harsh working environments.

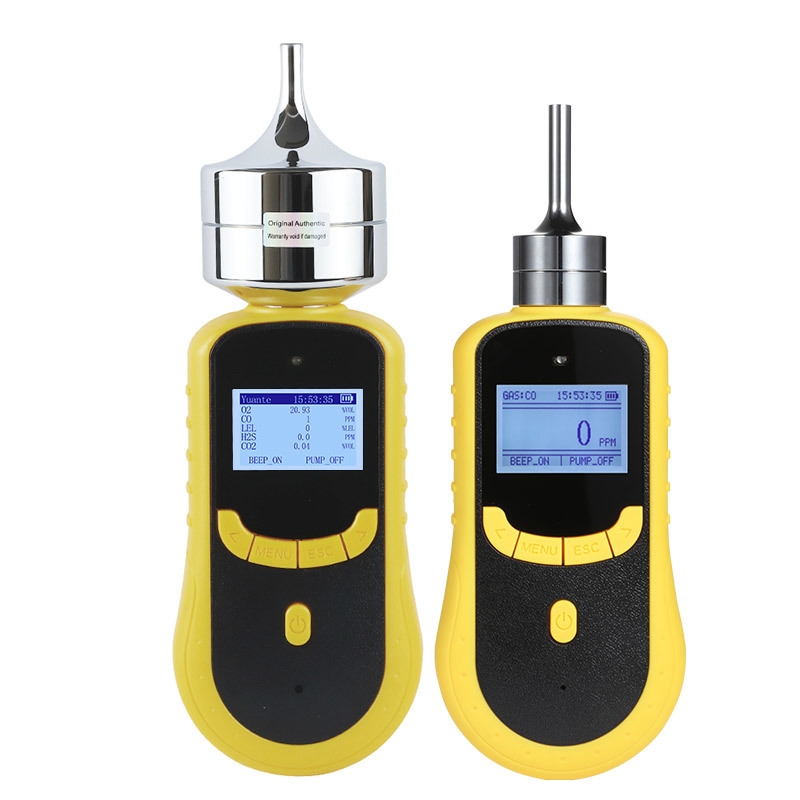

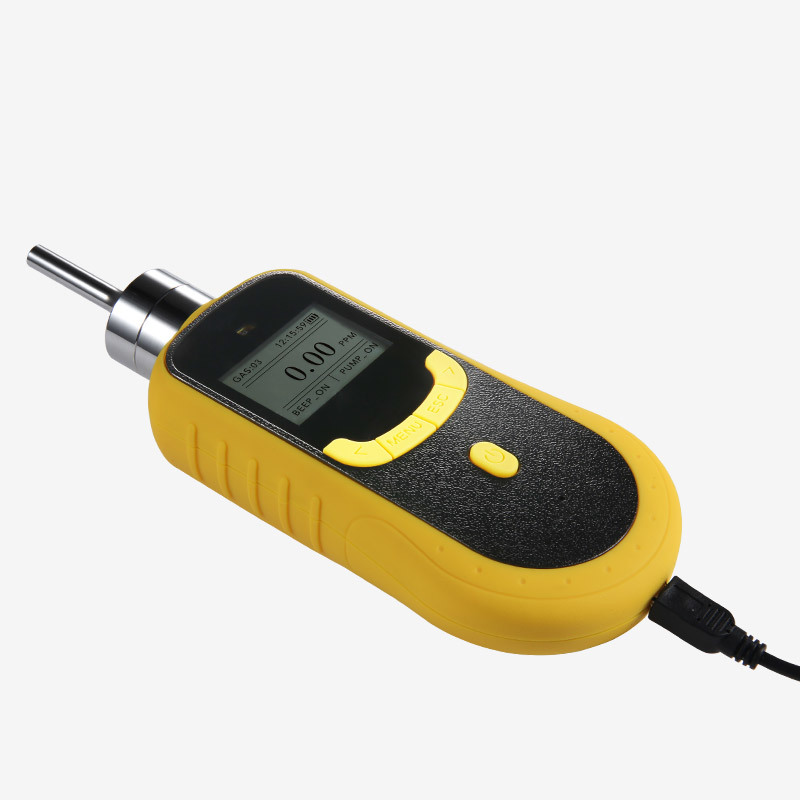

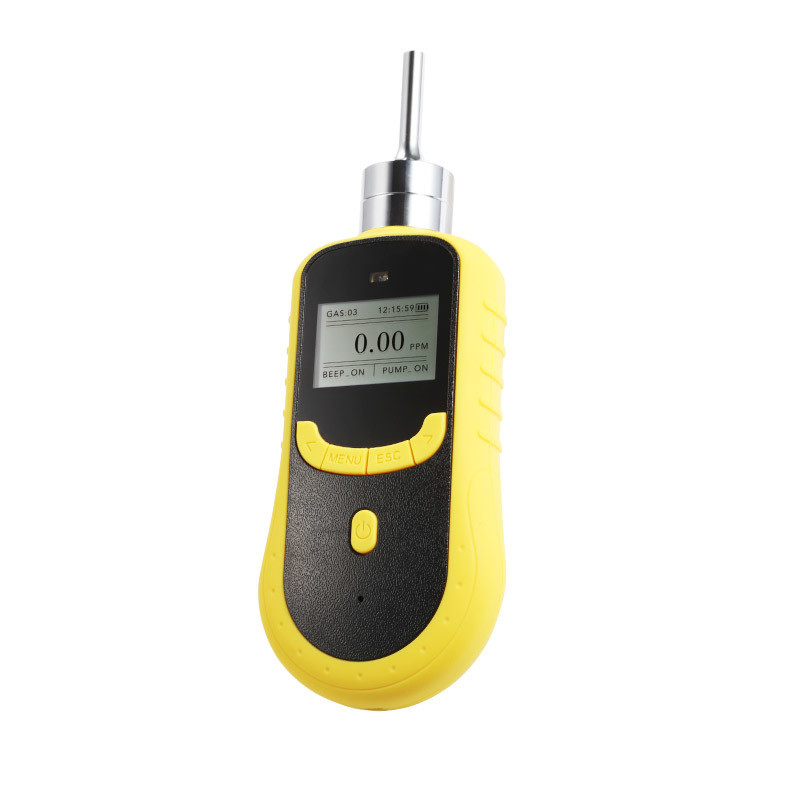

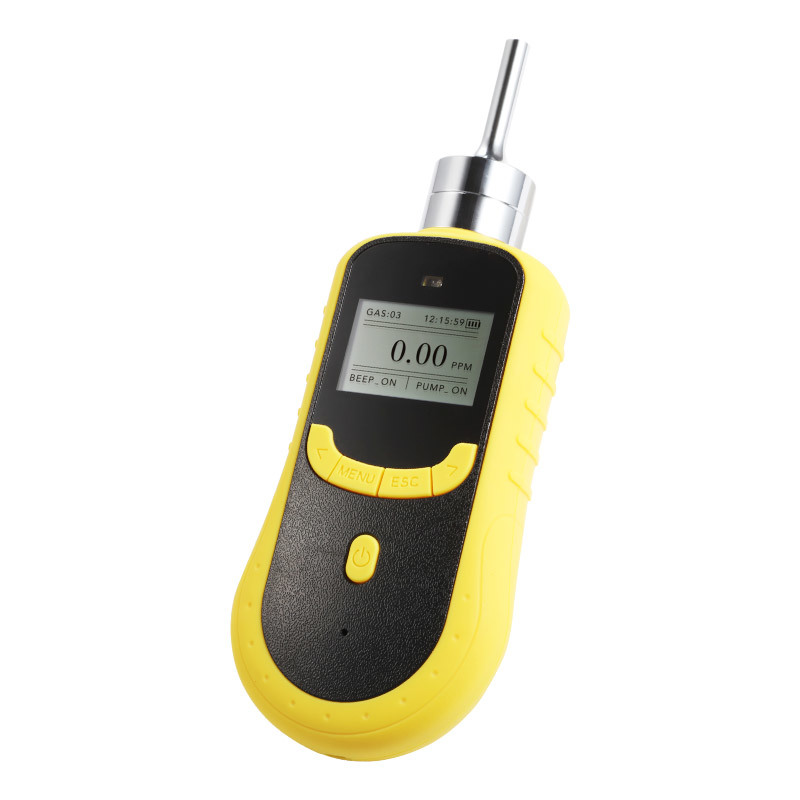

Product Pictures

SKY2000 Portable Pumping CO Gas Detector with IP66 Protection and Optional Data Logging 0

SKY2000 Portable Pumping CO Gas Detector with IP66 Protection and Optional Data Logging 1

SKY2000 Portable Pumping CO Gas Detector with IP66 Protection and Optional Data Logging 2

SKY2000 Portable Pumping CO Gas Detector with IP66 Protection and Optional Data Logging 3

SKY2000 Portable Pumping CO Gas Detector with IP66 Protection and Optional Data Logging 4

Key Technical Specifications

Parameter	Value
Model	SKY2000
Detected Gas	Carbon Monoxide (CO)
Detection Principle	Electrochemical
Sampling Method	Built-in pumping suction
Measuring Range	0-500 ppm / 0-1000 ppm
Resolution	1 ppm
Precision	≤±1-5% F.S.
Response Time	≤20S
Recovery Time	≤10S
Repeatability	≤±1%
Zero Shift	≤±1% F.S./year
Linearity Error	≤±1%
Display	LCD dot matrix with backlight
Gas Unit	Switchable
Data Logging (Optional)	100,000 readings; export via USB to PC
Alarm Mode	Sound + Light + Vibration
Explosion-proof Grade	Ex ia IIC T4 Ga
Protection Grade	IP66
Operating Temperature	-20℃ ~ 50℃
Operating Humidity	0-95% RH (non-condensing)
Operating Time	Up to 100 hours (pump off)
Dimensions	205×75×32 mm
Weight	300 g
Operating Language	Chinese / English

Main Product Features

Built-in high-speed sampling pump - Fast suction speed and high flow rate ensure rapid and stable detection.
High-precision electrochemical sensor - Stable performance, low drift, and accurate measurement of CO concentration.
Dual measuring range available - Supports 0-500 ppm and 0-1000 ppm for flexible application scenarios.
Clear LCD dot matrix display - With backlight for clear reading in low-light or complex environments.
Dual calibration functions - Zero calibration and span calibration ensure long-term measurement accuracy.
Optional large-capacity data logging - Stores up to 100,000 records and supports USB data export.
Triple alarm system - Sound, light and vibration alarms work simultaneously to avoid missing warnings.
One-key factory reset - Quickly restore default settings to prevent misoperation.
Industrial-grade rugged design - IP66 waterproof and dustproof, suitable for harsh industrial environments.

Carbon Monoxide (CO) Application & Detection Guidance

Carbon monoxide (CO) is a common toxic and flammable gas in industrial production, which may cause poisoning or explosion hazards when leaked or accumulated. SKY2000 uses pump suction to realize real-time and accurate CO monitoring, helping operators detect risks early and ensure on-site safety.

Typical Applications for CO Detection

Confined space entry - Tanks, sewers, tunnels (combustion engine exhaust)
Parking garages & loading docks - Vehicle exhaust accumulation
Industrial hygiene - Worker exposure monitoring in steel mills, refineries, chemical plants
Coal mines - CO from blasting, diesel equipment, or coal oxidation
Fire & rescue - Post fire overhaul to check for lingering CO
Power plants & boiler rooms - Incomplete combustion monitoring
Warehouses with gas powered forklifts - Operator safety

Frequently Asked Questions

How often should I calibrate the SKY2000?
Perform a bump test daily before use. Full calibration every 6-12 months or if readings seem inaccurate.
What is the pump runtime?
With pump off: 100 hours. With pump continuously on: typically 10-15 hours (depending on duty cycle). Recharge via USB.
How do I export data without the docking station?
Connect the detector to a PC via USB - it appears as a removable drive. Copy the CSV log files directly.
Can I use the detector in explosive atmospheres?
Yes. It has Ex ia IIC T4 Ga certification for Zone 0, 1, 2 hazardous areas.
What is the lifespan of the CO sensor?
Typically 2-3 years under normal conditions. Replace when calibration fails or response degrades.
Does the detector come with a water trap filter?
Yes, a standard water/dust filter is included to protect the pump and sensor.
How do I perform a zero or span calibration?
Follow the manual: expose the detector to zero air (or 100% nitrogen) for zero calibration, then to a known concentration of CO gas for span calibration.
What happens if the pump fails?
The detector will show a pump failure alarm. You can still use the device in diffusion mode (gas reaches the sensor naturally), but response time will be slower.
Is data logging standard?
It is optional. Please specify when ordering if you need the data logging function (100,000 records).
What is the warranty period?
1 year for the detector; sensors have a shorter warranty (typically 1-2 years depending on type).

Company Introduction

Shenzhen YuanTe Technology Co., Ltd. (brand: Safegas) was established in 2010 and specializes in the R&D, manufacturing, and sales of gas detection equipment and integrated systems. With over 16 years of industry expertise, the company serves sectors including oil & gas, chemicals, environmental protection, electronics, municipal engineering, agriculture, and household appliances. All products are manufactured under ISO9001 and ISO45001 management systems, holding international certifications such as IECEx, ATEX, and EMC. With an annual production capacity of over 80,000 units, YuanTe Technology supplies gas detection solutions to customers worldwide.

Company Advantages

Established since 2010 - Over 16 years of experience in gas detection R&D and manufacturing
Full product range - Portable detectors, fixed transmitters, analyzers, control panels, docking stations, accessories
International certifications - IECEx, ATEX, EMC certified for hazardous areas
Wide gas & industry coverage - Hundreds of gases; serve oil & gas, chemical, mining, environmental, food, pharma, and more
Strong R&D & quality - ISO9001 & ISO45001 certified; professional R&D team and global service network
High production capacity - Over 80,000 units per year with fast delivery (5-7 working days typical)
Global customer support - 24/7 after sales service and solutions tailored to diverse industries
