| 起源の場所: | 中国 |
|---|---|
| ブランド名: | SAFEGAS |
| 証明: | CNEX CE ISO9001, ISO14001, ISO45001 |
| モデル番号: | YT-95H |
| 最小注文数量: | 1 |
| 価格: | 交渉可能 |
| パッケージの詳細: | カートン |
| 受渡し時間: | 3営業日 |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 1か月あたり1000個 |
| 検出されたガス: | VOC | 範囲: | 0-100ppm |
|---|---|---|---|
| Resolusion: | 0.1ppm | センサーの種類: | 電気化学 |
| HSコード: | 9027100090 | 寸法: | 180mm×150mm×90mm |
| 重さ: | 1.6kg未満 | 防爆グレード: | 前d IIC T6 GB |
| 画面: | 液晶 | 再現性: | ≤±1％ |
| ゼロシフト (F.S./年): | ≤±1％ |

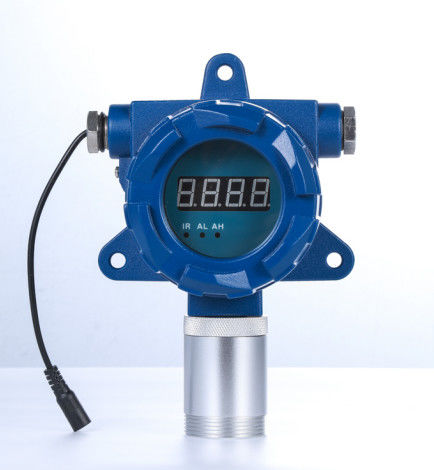

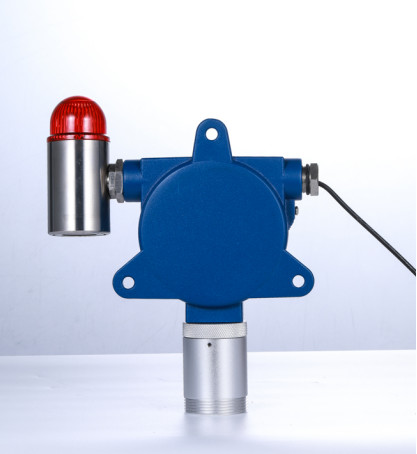

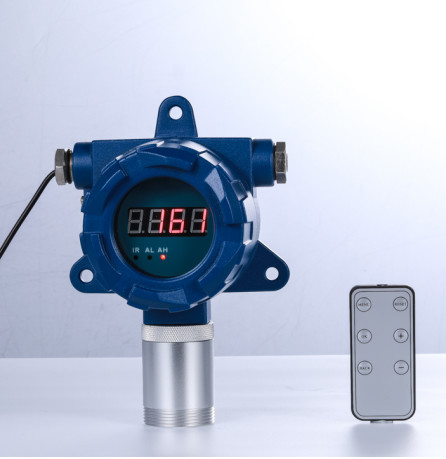

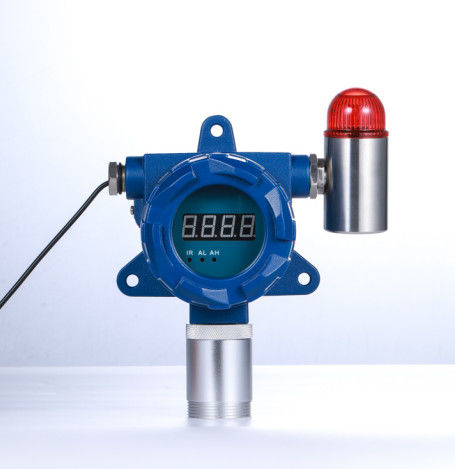

High-precision Fixed VOC Gas Detector with diffusion detection principle, designed for industrial safety applications.
YT-95H/YT-95H-A series is a cost-effective explosion-proof transmitter for the detection of flammable gases and toxic gases. Featuring a 3-wire 4 to 20 mA analog output with relays and RS485 Modbus protocol, it's compatible with most control systems. Third-party components such as horns, warning lights, and fans can be integrated into the system. With optional wireless function, operators can view data remotely on laptops, mobile phones, or cloud systems.
| Gas Detected | VOC |
| Detection Principle | Electrochemical |
| Measure Range | Specified according to application |
| Resolution | Specified according to application |
| Accuracy | ≤±2-5%FS (depending on the specific sensor) |
| Response Time (T90) | 15-30s (depending on the specific sensor) |
| Repeatability | ≤±1% |
| Zero Shift | ≤±1% (F.S./year) |
| Display | 4 digits Nixie tube display |
| Connection Mode | G1/2 external thread explosion-proof flexible pipe |
| Thread Size | M45×2mm |
| Temperature | -20℃ ~ 50℃ |
| Humidity | 0-95%RH (no condensation) |
| Material Case | Die-cast aluminum, Sensor housing: aluminum alloy or 316 stainless steel |
| Power | 12-36V DC |
| Dimensions | 180×150×90mm |
| Weight | ≤1.6kg |
| Explosion-proof Grade | Ex d IIC T6 Gb |
