| 起源の場所: | 中国 |
|---|---|
| ブランド名: | SAFEGAS |
| 証明: | ATEX/EMC/IECEX |
| モデル番号: | Sky3000 |
| 最小注文数量: | 1 |
| 価格: | 交渉可能 |

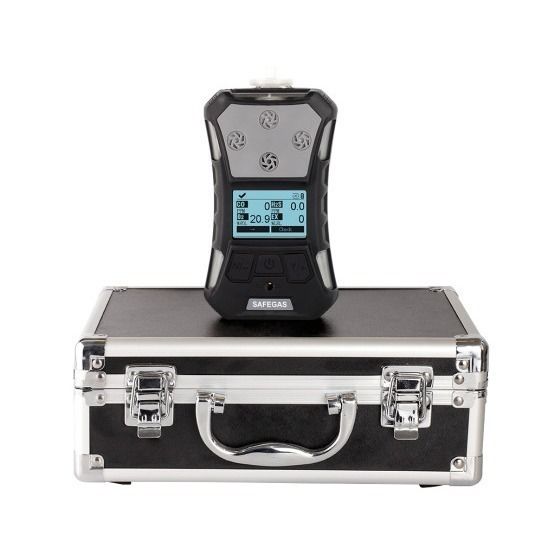

| パッケージの詳細: | アルミニウムスーツケース |
| 受渡し時間: | 3営業日 |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 1か月あたり1000個 |
| ガス: | CO | 測定範囲: | 0-1000ppm |
|---|---|---|---|
| 解決: | 1ppm | センサーの種類: | 電気化学 |
| サンプリング方法: | ポンプ吸引 | 証明: | CE,ATEX,IECEx,ISO |
| 言語: | 中国/英語/ロシア語/カスタマイズ | アラームモード: | バザー,LED,振動 |
| 力: | 3.7V充電可能なリチウムバッテリー | 勤務時間: | 15時間以上 (ポンプが動いている場合) |
| データレコード: | 100000セットのデータを保存できます | 単一パッケージのサイズ:: | 34cm*24cm*14cm |
| 単一の総体重：: | 1.64kg | 保護等級: | IP67 |

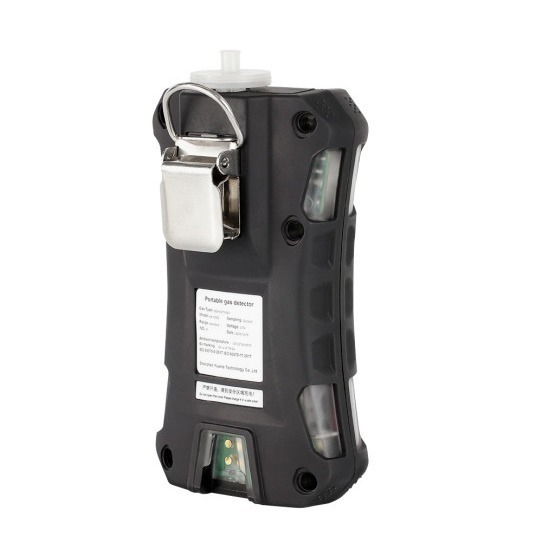

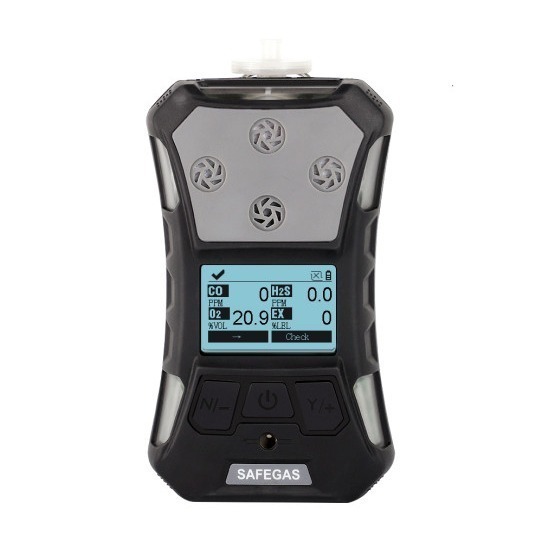

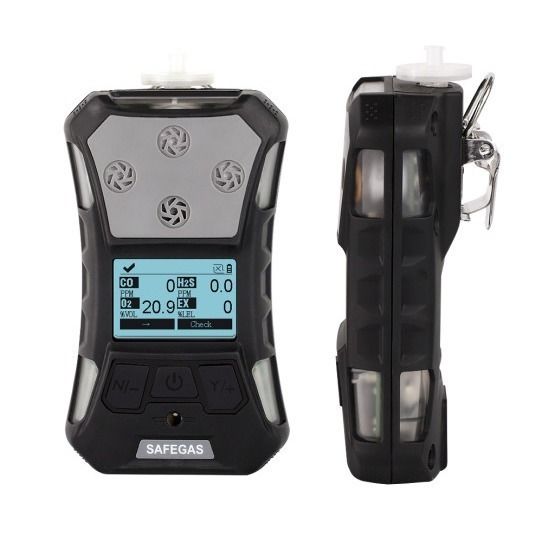

SKY3000 Portable Gas Detector - A high-performance portable gas detector capable of detecting multiple gases simultaneously with man down alarm function. Features international IECEX and ATEX explosion-proof certification with IP67 protection rating.
| Parameter | Specification |
|---|---|
| Sampling method | Pump suction |
| Gas type | Specified according to application |
| Measure range | Specified according to application |
| Resolution | Specified according to application |
| Response time | ≤10 seconds |
| Precision | ≤±1% F.S |
| Language | English (Other languages customizable) |
| Automatic functions | Reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ switchable |
| Display | Monochrome graphics (160 x 96), automatic screen flip |
| Backlight | Manually settable time, automatic on during alarm |
| Data record | 100,000 data sets, adjustable storage interval 5-3600 seconds, data exportable |
| Alarm | 95dB buzzer, vibration, flashing red LED, screen indication, diagnostic alarm, battery undervoltage, pump block, man down alarm with Bluetooth notification |
| Battery | 3.7V rechargeable lithium battery, 2200mA capacity |
| Working hours | More than 15 hours continuous pumping |
| Charger | Travel charger with DC interface, ≥4 hours charging time |
| Explosion-proof grade | IECEX/ATEX (II IG Ex ia IIC T4), CNEX: Ex ia IIC T4 Ga |
| Certification (EU) | 2004/108/EC (EMC), 1995/5/EC (Radio), 94/9/EC (ATEX) |
| Protection grade | IP67/IP68 |
| Working temperature | -20ºC to +50ºC |
| Humidity | 0-90% RH (no condensation) |
| Environmental pressure | 86-106 Kpa |
| Size | 157 × 84.5 × 59.5mm (including accessories) |
| Weight | 365g (including battery and accessories) |
| Bluetooth function (Optional) | Real-time data transmission to mobile phone or PC |
This device is widely used in various industrial fields:
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and systems for 16 years. With "gas detector" as the core product, we have complete production lines and solutions for different industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.
Our products include portable types, fixed types and controller panels:
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality comparable to international brands with competitive pricing.
We have successfully cooperated with major international companies including Huawei, Coca-Cola, Samsung, Nestlé and more.
