| 起源の場所: | 中国 |
|---|---|
| ブランド名: | SAFEGAS |
| 証明: | ATEX/IECEX |
| モデル番号: | SG100 |
| 最小注文数量: | 1 |
| 価格: | 交渉可能 |
| パッケージの詳細: | アルミニウムスーツケースパッキング |
| 受渡し時間: | 3営業日 |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 1000個/日 |
| 検出されたガス: | CH4 | 範囲と解像度を測定します: | 0-100％LEL |
|---|---|---|---|
| Resolusion: | 1％LEL | センサーの種類: | 触媒作用の燃焼 |
| 正確さ: | ≤±2-5％fs | 爆発的な認証: | IECEX,ATEX,CE |
| 保護等級: | IP66/68 | 通信モード: | 4-20MA rs485 1〜5V、オプションのハート |
| ワイヤレス（オプション）: | LORAまたは4Gをサポートします | リレー: | 低/高/故障アラーム・リレーを含む3つのリレー (オプション) |
| 使用温度: | –20 ℃～50℃ | 重さ: | 1.0kg |
| サイズ: | 157.8x128.8x69.6mm |

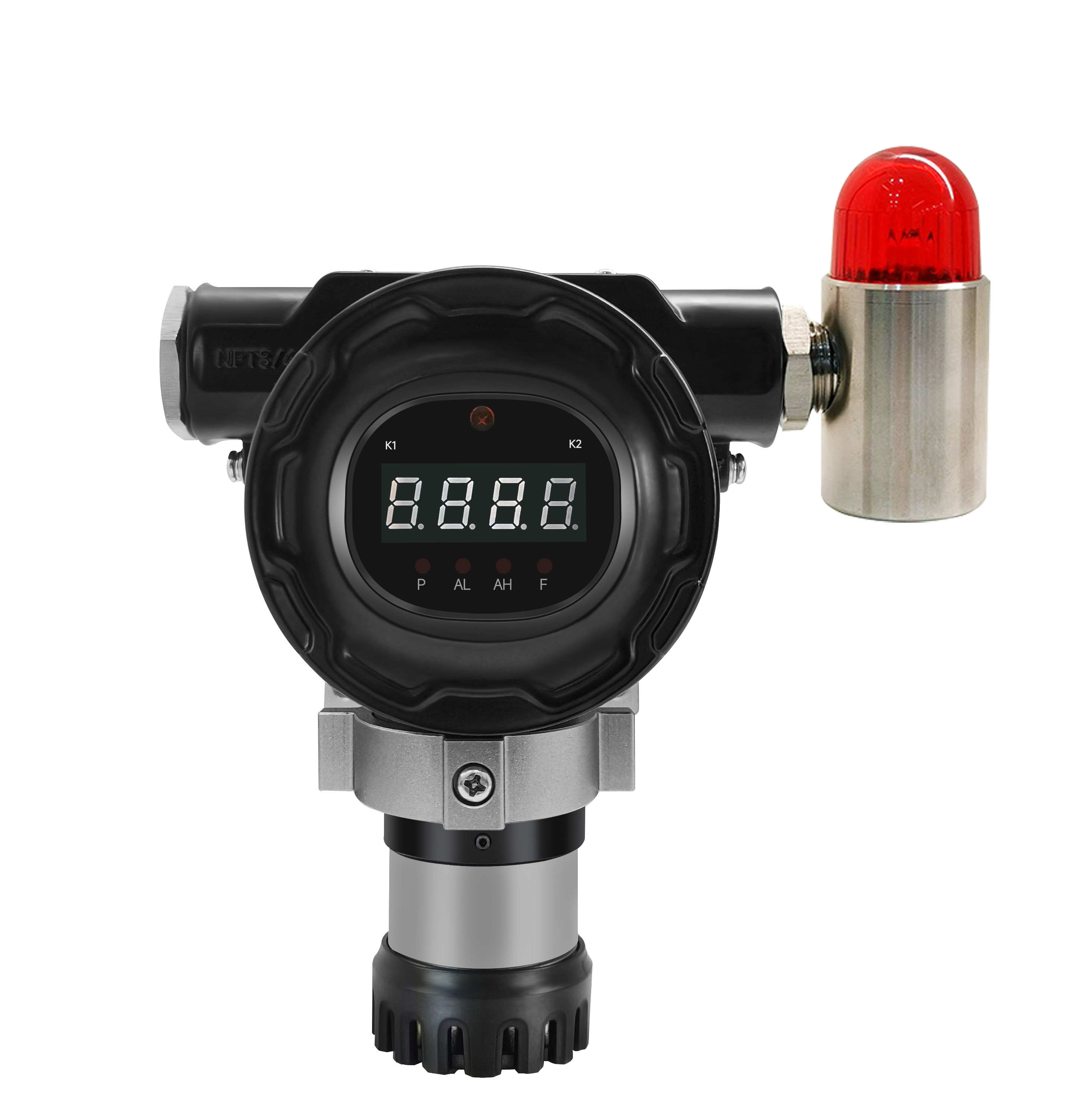

High-precision Fixed CH4 Gas Detector with diffusion detection principle, designed for industrial safety applications.
SG100 series is a cost-effective and intrinsically safe gas detector for the continuous monitoring of toxic gases, oxygen, and flammable gases. With IECEx and ATEX certificates, explosion level reaches Ex db IIC T6 GB/Ex db ia IIC T6 GB/Ex da db ia IIC T6 GB. Featuring a 3-wire 4 to 20 mA analog output with relays, it also offers HART and RS485 Modbus protocol, making it compatible with most control systems. Optional wireless function eliminates wiring needs, saving labor costs and enabling transmission without limits. Magnetic wand design ensures safe and easy menu navigation in explosion areas. This intelligent hot-swappable fixed gas detector simplifies maintenance after installation.
| Parameter | Specification |
|---|---|
| Gas Detected | CH4 |
| Detection Principle | Specified according to the application |
| Measure Range | Specified according to the application |
| Resolution | Specified according to the application |
| Accuracy | ≤ ±2-5%FS (Depending on the specific sensor) |
| Explosion-proof Grade | IECEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb ATEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb |
| Protection Grade | IP66/68 |
| Power Dissipation | Toxic gas <2.5W, Flammable gas <4W |
| Communication Mode | 4-20mA (3-wires), RS485 1~5V, Hart (Optional) |
| Wireless | LORA, GPRS/4G (Optional) |
| Working Voltage | 12-24VDC |
| Contact Capacity | Standard with 1 set of relay signals, optional with 2 sets of relay signals |
| Display | LED display |
| Working Temperature | -40℃ ~ 70℃ (Catalytic sensor), -20℃ ~ 50℃ (Electrochemistry sensor) |
| Working Pressure | 86kPa~106kPa |
| Housing Material | Die casting aluminum |
| Electrical Interface | Standard internal screw thread M20 * 1.5, Optional 1/2NPT internal thread, G3/4, G1/2, 3/4NPT |
| Size | 157.8×128.8×69.6mm |
| Weight | About 1.0Kg |
