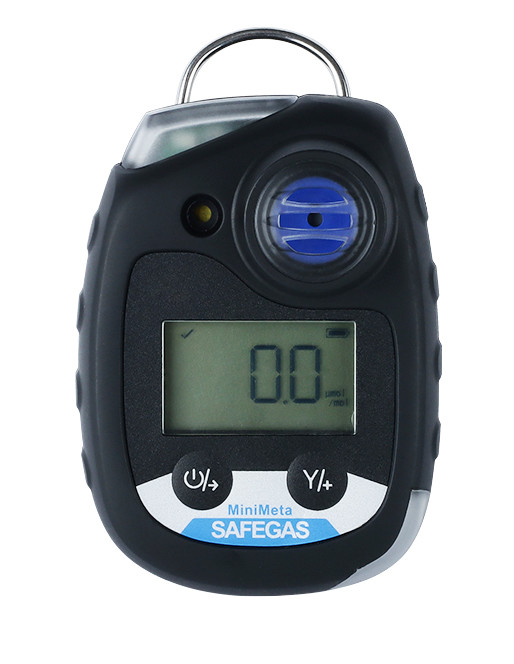

MiniMeta 2-Year Maintenance-Free IP68 Waterproof Gas Detector for Chlorine (CL₂) with Triple Alarm

A compact, IECEx/ATEX/EMC certified single-gas detector for chlorine (CL₂) monitoring. Measures 0–10ppm (0–20/50/100ppm also available) with 0.01ppm resolution using an electrochemical sensor. Features IP68 waterproof/dustproof, 2-year standby time on a single replaceable dry battery, triple alarm (95dB buzzer + 2 red LEDs + vibration), replaceable battery & sensor, and self-test function. Ideal for water treatment, chemical industry, and swimming pool safety.

The MiniMeta is an IECEx/ATEX/EMC certified portable single-gas detector designed for long-term, low-cost ownership. It operates on a 3.6V dry battery (non-rechargeable, replaceable) with a 2-year standby time – no charging and no calibration required during this period. The battery and sensor are both replaceable, extending the device's service life.

Taking chlorine (CL₂) as an example, the MiniMeta uses an electrochemical sensor to measure concentrations. Standard ranges include 0–10ppm, 0–20ppm, 0–50ppm, or 0–100ppm with a resolution of 0.01ppm. Accuracy is ≤ ±2–5% FS, with a response time (T90) of 15–30 seconds.

The detector features three simultaneous alarm modes: 95dB buzzer (@30cm), 2 high-brightness red LEDs, and vibration alarm. Users can set low/high alarm thresholds, STEL, TWA, and receive low battery, calibration due, and bump test due alerts. The LCD display shows gas name, concentration, unit, and battery power, along with real-time value, TWA, STEL, MAX, and MIN.

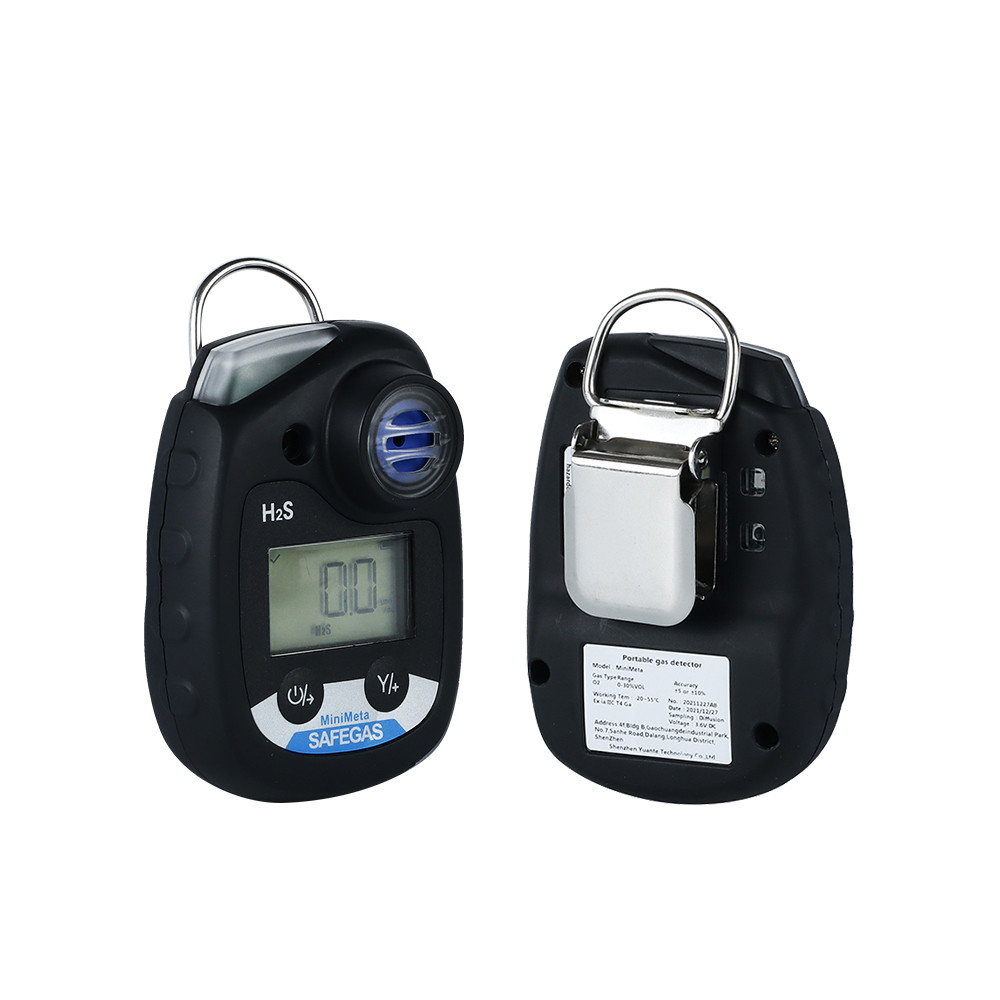

The MiniMeta includes a self-test function that automatically verifies sensor and circuit integrity on power-up, improving safety. It also features a back clip for easy carrying.

Chlorine is a greenish-yellow, highly reactive gas with a pungent, bleach-like odor. It is widely used as a disinfectant in water and wastewater treatment, in the production of PVC and other chemicals, and in swimming pool sanitation. Chlorine is highly toxic: even low concentrations cause eye and respiratory irritation; higher concentrations can cause pulmonary edema and death. Because chlorine is heavier than air, it accumulates in low-lying areas, making continuous monitoring essential for worker safety.

• Certified safety – IECEx/ATEX/EMC certified, Ex ia IIC T4 Ga for hazardous areas.
• IP68 protection – Fully waterproof and dustproof, submersible.
• 2-year standby time – Powered by replaceable 3.6V dry battery; no charging needed for two years.
• Replaceable battery and sensor – Extends device lifetime, reduces long-term ownership cost.
• Triple alarm – 95dB buzzer + 2 high-bright red LEDs + vibration.
• User-adjustable alarms – Low alarm, high alarm, STEL, TWA – all settable by user.
• Comprehensive display – Shows gas name, concentration, unit, battery level, real-time value, TWA, STEL, MAX, MIN.
• Automatic self-test – Verifies sensor and circuit on power-up.
• Compact and wearable – 90×60×33mm, 125g with clip.
• Low maintenance – No calibration needed during 2-year standby.

• Water & wastewater treatment plants – Chlorine disinfection monitoring.
• Swimming pools & aquatic centers – Residual chlorine leak detection.
• Chemical manufacturing – PVC, bleaching agents, and solvent production.
• Pulp & paper mills – Bleaching process monitoring.
• Pharmaceutical industry – Disinfection and sterilization areas.
• Food & beverage processing – Sanitization systems.
• Emergency response – Chemical spill and leak detection.

1. What is the battery life of the MiniMeta?

2 years standby on a single 3.6V dry battery (non-rechargeable, replaceable). No charging needed.

2. Can the MiniMeta be used in explosive atmospheres?

Yes – it has Ex ia IIC T4 Ga explosion-proof certification for Zone 0, 1, 2 hazardous areas.

3. Is the MiniMeta waterproof?

Yes – IP68 protection. It is dust-tight and submersible.

4. What is the warranty period?

1 year for the detector; sensors and batteries have shorter warranties (typically 1 year for electrochemical sensors).

5. How do I set alarm thresholds?

High and low alarm values are user adjustable. Follow the user manual for configuration instructions.

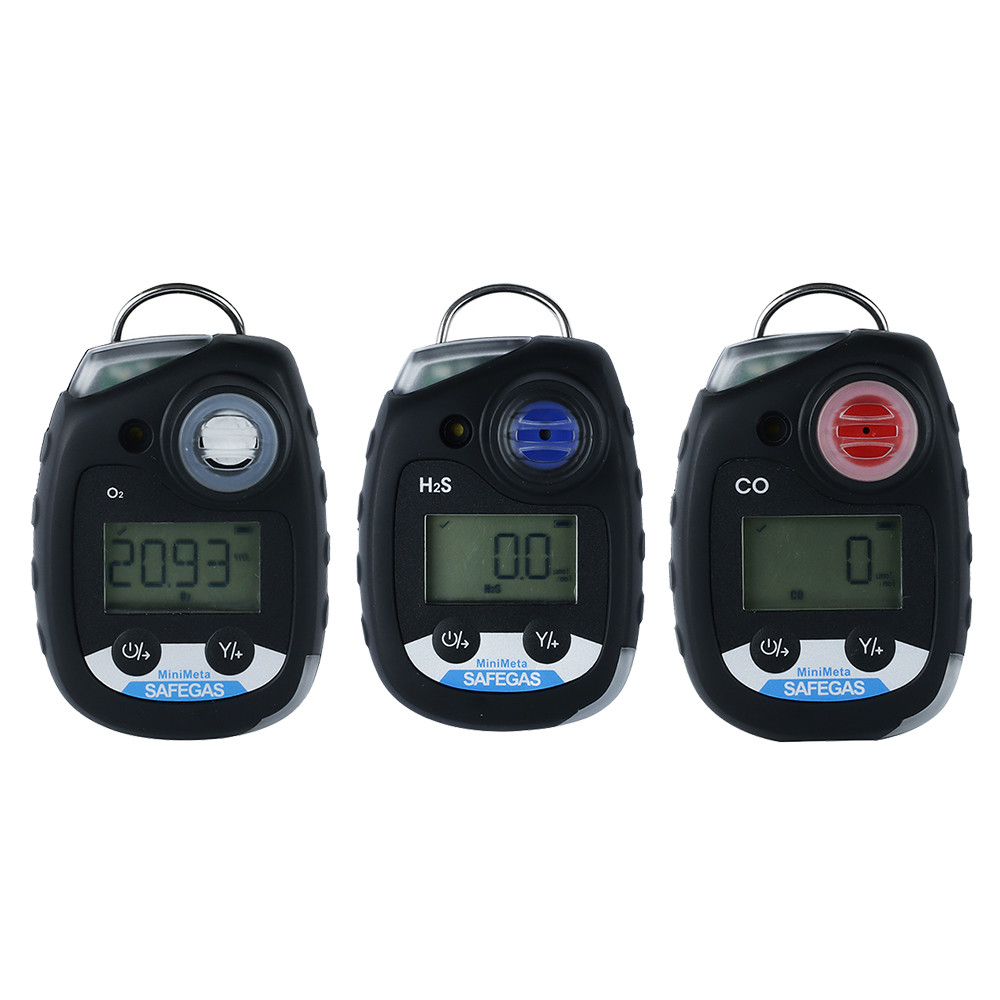

6. What gases can the MiniMeta detect?

It can detect hundreds of user-selected toxic gases, including CL₂, CO, H₂S, O₂, SO₂, NH₃, NO₂, etc. Specify when ordering.

7. Does the detector have a data logging function?

Yes! It has event and data logging fuction

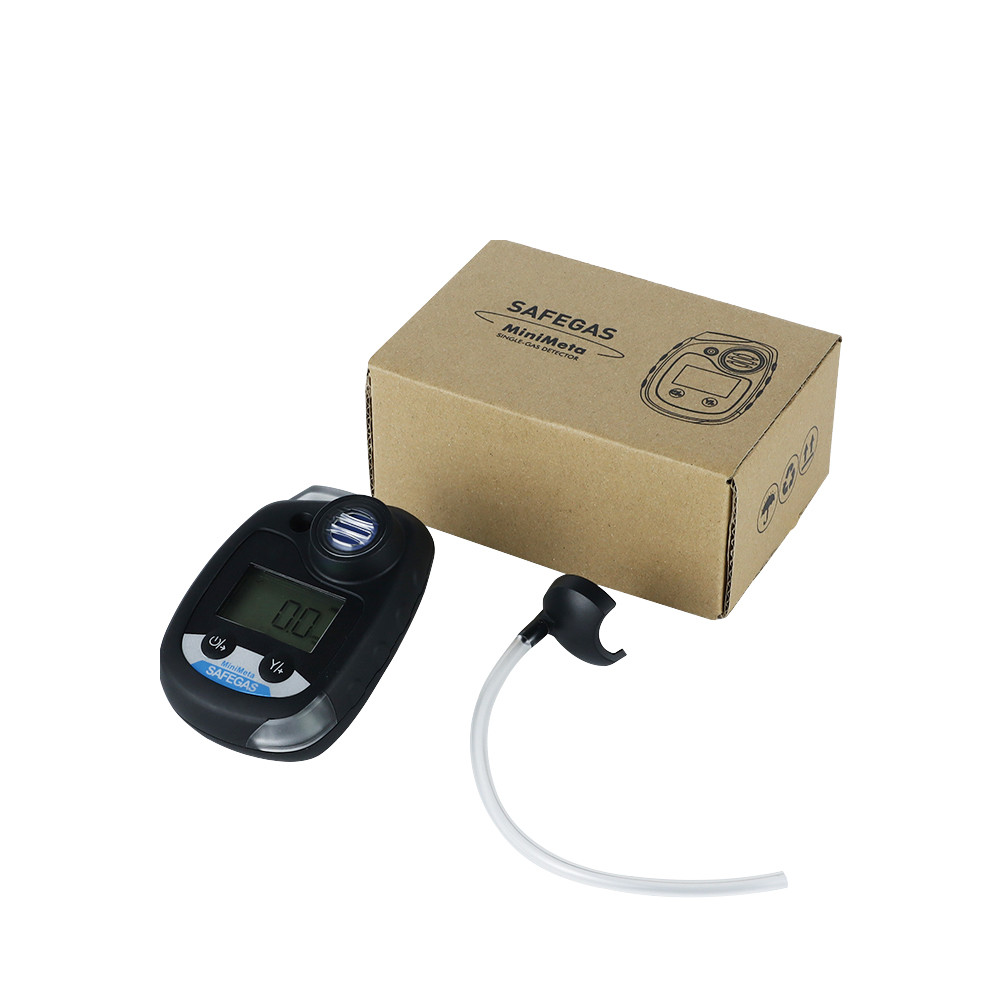

8. What is included in the standard package?

MiniMeta detector , user manual, calibration cap, warranty card.
