| 起源の場所: | 中国 |
|---|---|
| ブランド名: | SAFEGAS |
| 証明: | ATEX/EMC/IECEX |
| モデル番号: | Micmeta |
| 最小注文数量: | 1 |
| 価格: | 交渉可能 |
| パッケージの詳細: | カートン（22*16*11cm） |
| 受渡し時間: | 3営業日 |
| 支払条件: | T/T |
| 供給の能力: | 1 か月あたり 3000 個 |
| 労働時間: | 待機時間 24h,充電時間 <6h | 作業方法: | 拡散 |
|---|---|---|---|
| 認証 (EU規制): | 2004年 (ATEX) | カリブレーションプラットフォーム: | 変更,機能試験,校正操作はDKM-MicMetaドッキングステーションで実行できます (オプション) |
| ワイヤレス送信: | Bluetooth 送信機能 (オプション) ロラ 送信機能 (オプション) | Resolusion: | 1%LEL 1PPM 0.1PPM 0.1%VOL |
| 範囲: | 0-100%LEL CO 0-1000PPM H2S 0-100PPM O2 0-30%VOL | バッテリー: | 3.7V リチウム電池 2300mA 電池容量 |
| 応答時間（T90）: | ≤30s | 保護等級: | IP66/IP68 |
| 電源を入れると自動的にテストと校正: | 自動試験,校正,自動ゼロ,最大値 (MAX),最小値 (MIN),STEL,TWA値を含む. | 検出されたガス: | LEL CO H2S O2 |
| 重さ: | 240g (リチウム電池付き) | データレコード: | 1000セットデータ記録と100セットイベント記録 |
| ハイライト: | ATEX portable gas detector,coal mine toxic gas alarm,combustible gas safety monitor |
||

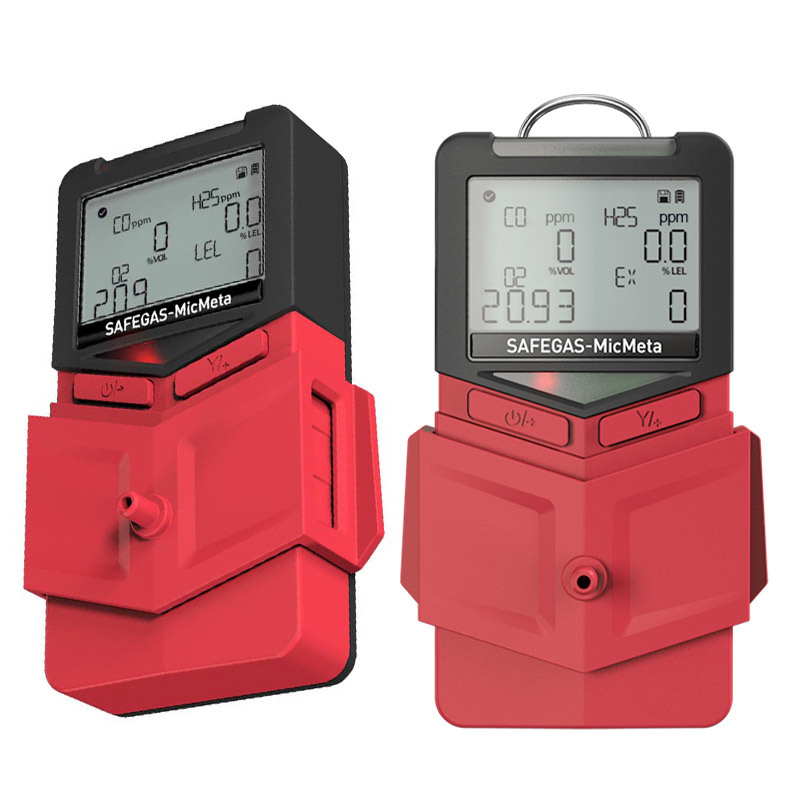

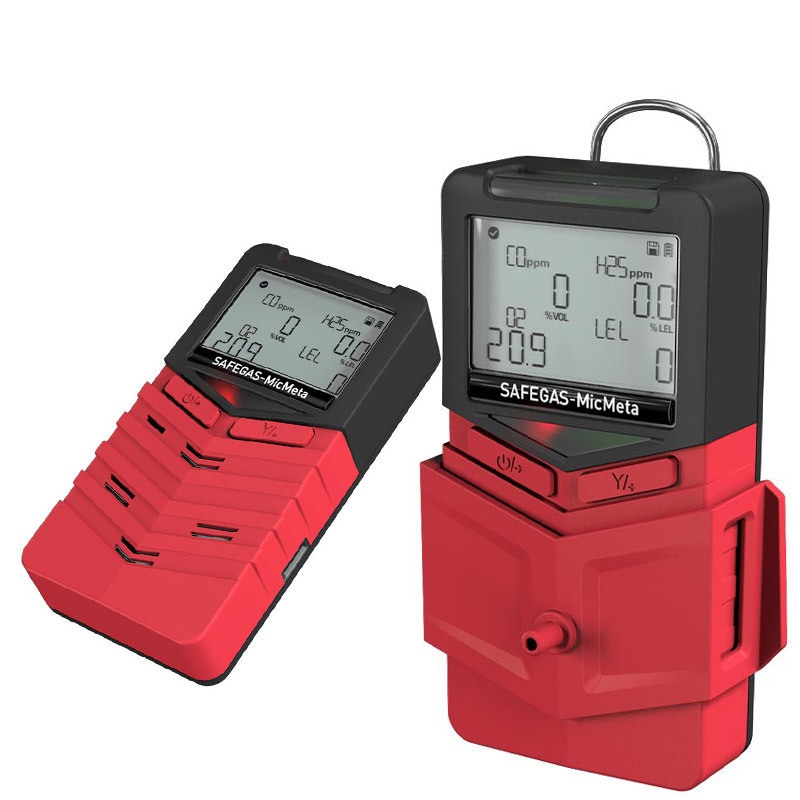

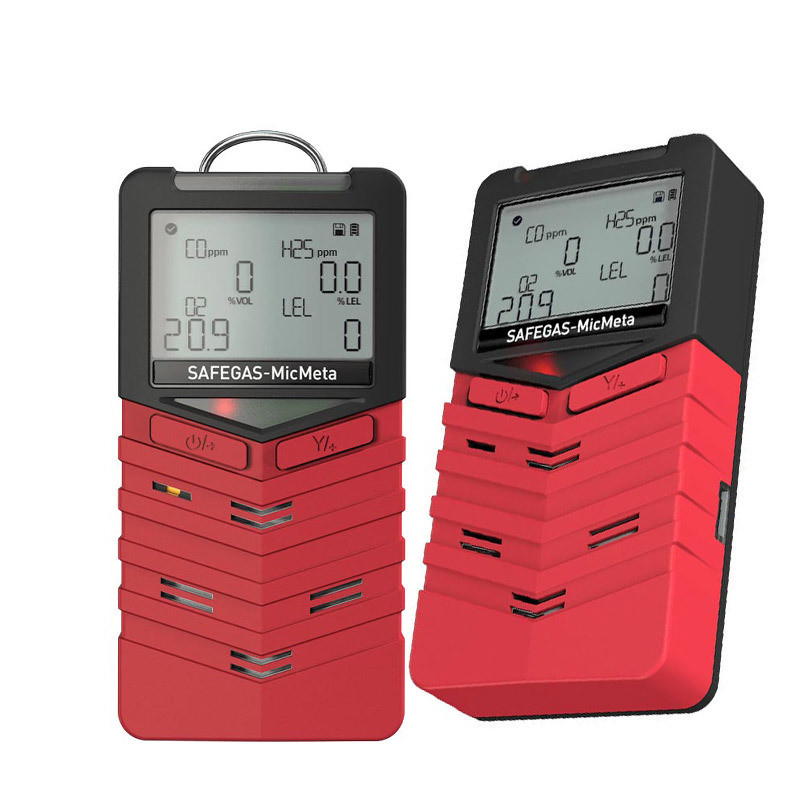

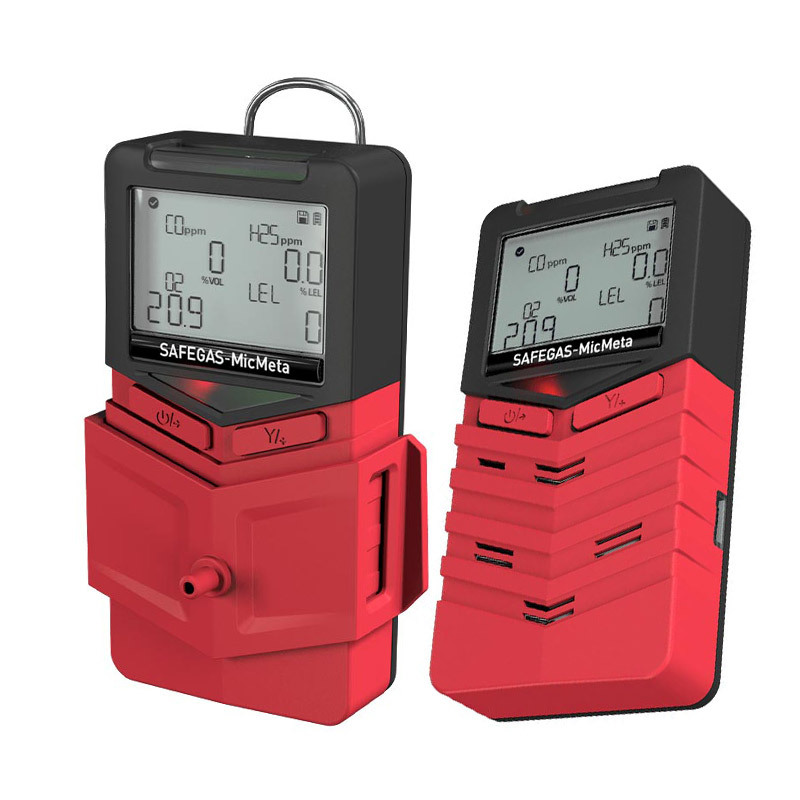

Portable multi model LEL CO H2S O2 gas detector with bump test and calibration
MicMeta is a multi-gas detector that has been certified by IECEx, ATEX, and EMC. It's lightweight and compact with standard gas types including multi 4 (CO H2S O2 LEL) gases and support for hundreds of selectable gases. Features include standard man-down alarm and data logging function, with optional Lora and Bluetooth wireless data transmission for easy data access.
| Parameter | Specification |
|---|---|
| Sampling method | Diffusion |
| Gas type | LEL CO H2S O2 |
| Measure range | 0-100%LEL CO 0-1000PPM H2S 0-100PPM O2 0-30%VOL |
| Resolution | 1%LEL 1PPM 0.1PPM 0.1%VOL |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on the specific sensor) |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Display | Segment code LCD display |
| Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records and 100 sets events records |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable. |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade | CNEX:Ex ia IIC T4 Ga |
| (EU regulations) | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86~106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |
Safegas is a company that focuses on the design, production and sales of environmental monitoring equipment and system for 16 years. With "gas detector" as the core product, we have completed production lines and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 16 years of rapid development, Safegas becomes the influential supplier for environmental monitoring equipment and system in the domestic and overseas market.
For years, Safegas always insisted on the management concept "Market is orientation. Innovation is motivation. Quality to survival. Development to growth." With friendly, open, and strict corporate culture and standardized management, Safegas gathers a lot of talents and builds up the management team and R&D team. All the staff cooperates well in product development, production, and maintenance, and has a deep understanding of the concept of "customer-oriented", and runs the service spirit through the company operation and management, to win the trust and support from customers.
Depending on years of measurement experience and Safegas solutions, through independent research and development, cooperative development and learning overseas latest technology, Safegas's products are domestic advanced, and can compete with overseas brand. We are seeking for development and progress constantly, and trying to meet diversified demands from customers.
